Dimensions:
49.6 x 8.0 x 3.2mm
Physical Form:
PCB
RF Protocols:
4G (LTE)
Height:
3.2mm
Width:
8mm
Length:
49.6mm
Gain:
2.6 dBi, 4.4 dBi, 3.4dBi
Frequency Range:
700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.126" (3.20mm)
title:

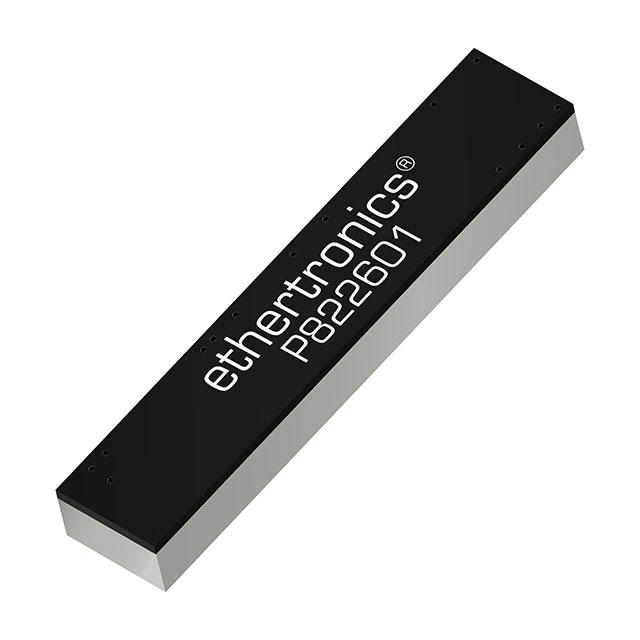

P822601
edacadModel:
P822601 Models
Applications:
CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
Gain:
1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi
edacadModelUrl:
/en/models/5452864
Manufacturer:
KYOCERA AVX
Number of Bands:
8
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz
Termination:
Solder
standardLeadTime:
11 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Flat Bar
Series:
Prestta™
Packaging:
Tape & Reel (TR)
Power - Max:
2 W
VSWR:
2.5
Return Loss:
-
ECCN:
EAR99
