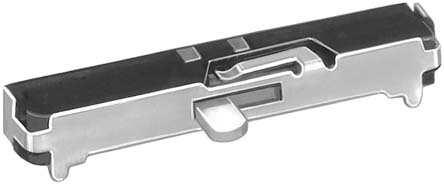

PCB Slide Switch DPDT On-On 500 mA @ 6 V dc Slide

MMS-224 PCB Slide Switch DPDT On-On 500 mA @ 6 V dc Slide
KNITTER-SWITCH

Product Information

Contact Resistance:
70mΩ
Dimensions:
16.8 x 5 x 2.6mm
Mounting Type:
PCB
Voltage Rating:
6V dc
Contact Current Rating:
500 mA @ 6 V dc
Minimum Operating Temperature:
-40°C
Contact Configuration:
DPDT
Length:
16.8mm
Actuator Material:
Liquid Crystal Polymer
Operating Temperature Range:
-40 → +85°C
Width:
5mm
Depth:
2.6mm
Actuator Type:
Slide
Mechanical Life:
5000Operations
Switch Operation:
Latching
Maximum Operating Temperature:
+85°C
Terminal Type:
PC Pin
Contact Material:
Beryllium Copper
RoHs Compliant
Checking for live stock

This is PCB Slide Switch DPDT On-On 500 mA @ 6 V dc Slide manufactured by KNITTER-SWITCH. The manufacturer part number is MMS 224. It features a 70mω contact resistance. The given dimensions of the product include 16.8 x 5 x 2.6mm. The product is available in pcb configuration. Moreover, the product has a nominal 6v dc voltage rating. The rated contact current is 500 ma @ 6 v dc. Whereas, the minimum operating temperature of the product is -40°c. The contact is equipped with dpdt configuration. Its accurate length is 16.8mm. The actuator is designed from sturdy liquid crystal polymer material. The product has -40 → +85°c of operating temperature range. Furthermore, the product is 5mm wide. The product comes in 2.6mm depth. The product carries slide actuator. The product also provide mechanical stability with 5000operations. It provides latching switch operation. It has a maximum operating temperature of +85°c. The terminal is a pc pin type. The product is made from sturdy beryllium copper materials.

pdf icon
MMS Catalog page(Technical Reference)
pdf icon
MMS Datasheet(Technical Reference)
