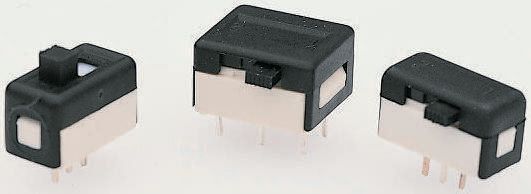

PCB Slide Switch DPDT On-On 100 mA @ 30 V dc Slide

  • Enrgtech Part No: ET13979643
  • |
  • Manufacturer Part No:

    25346NLD

  • |
  • Manufacturer: Apem
25346NLD PCB Slide Switch DPDT On-On 100 mA @ 30 V dc Slide
Apem

Product Information

Contact Resistance:
50mΩ
Dimensions:
14.1 x 8.1 x 14.8mm
Mounting Type:
PCB
Voltage Rating:
30V
Contact Current Rating:
100 mA @ 30 V dc
Minimum Operating Temperature:
-40°C
Contact Configuration:
DPDT
Length:
14.1mm
Actuator Material:
Polyamide
Operating Temperature Range:
-40 → +85°C
Width:
14.1mm
Depth:
8.1mm
Actuator Type:
Slide
Mechanical Life:
20000Operations
Switch Operation:
Latching
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Contact Material:
Gold Plated Brass
RoHs Compliant
Checking for live stock

This is PCB Slide Switch DPDT On-On 100 mA @ 30 V dc Slide manufactured by Apem. The manufacturer part number is 25346NLD. It features a 50mω contact resistance. The given dimensions of the product include 14.1 x 8.1 x 14.8mm. The product is available in pcb configuration. Moreover, the product has a nominal 30v voltage rating. The rated contact current is 100 ma @ 30 v dc. Whereas, the minimum operating temperature of the product is -40°c. The contact is equipped with dpdt configuration. Its accurate length is 14.1mm. The actuator is designed from sturdy polyamide material. The product has -40 → +85°c of operating temperature range. Furthermore, the product is 14.1mm wide. The product comes in 8.1mm depth. The product carries slide actuator. The product also provide mechanical stability with 20000operations. It provides latching switch operation. It has a maximum operating temperature of +85°c. The terminal is a through hole type. The product is made from sturdy gold plated brass materials.

pdf icon
Datasheet(Technical Reference)
pdf icon
25000N series Professional slide switches Data Sheet(Technical Reference)
