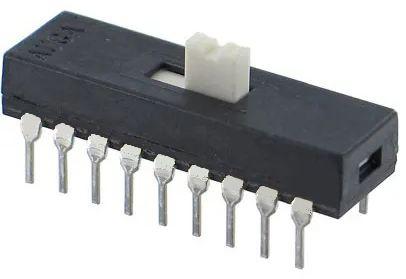

Surface Mount Slide Switch DPDT 20 mA Extended

ASE22RGL04 Surface Mount Slide Switch DPDT 20 mA Extended
TE Connectivity

Product Information

Contact Resistance:
40mΩ
Dimensions:
10.16 x 8.14 x 8.31mm
Mounting Type:
Surface Mount
Voltage Rating:
20V dc
Contact Current Rating:
20 mA
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +80°C
Length:
8.14mm
Actuator Material:
Polyester
Width:
5.5mm
Depth:
10.16mm
Actuator Type:
Extended
Contact Configuration:
Double Pole Double Throw (DPDT)
Maximum Operating Temperature:
+80°C
Terminal Type:
Pc Pin
Contact Material:
Copper Alloy
RoHs Compliant
Checking for live stock

This is Surface Mount Slide Switch DPDT 20 mA Extended manufactured by TE Connectivity. The manufacturer part number is ASE22RGL04. It features a 40mω contact resistance. The given dimensions of the product include 10.16 x 8.14 x 8.31mm. The product is available in surface mount configuration. Moreover, the product has a nominal 20v dc voltage rating. The rated contact current is 20 ma. Whereas, the minimum operating temperature of the product is -40°c. The product has -40 → +80°c of operating temperature range. Its accurate length is 8.14mm. The actuator is designed from sturdy polyester material. Furthermore, the product is 5.5mm wide. The product comes in 10.16mm depth. The product carries extended actuator. The contact is equipped with double pole double throw (dpdt) configuration. It has a maximum operating temperature of +80°c. The terminal is a pc pin type. The product is made from sturdy copper alloy materials.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ASE22RGL04 on website for other similar products.
We accept all major payment methods for all products including ET13918530. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with ASE22RGL04 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Slide Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Surface Mount Slide Switch DPDT 20 mA Extended. You can also check on our website or by contacting our customer support team for further order details on Surface Mount Slide Switch DPDT 20 mA Extended.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13918530 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13918530.
Yes. We ship ASE22RGL04 Internationally to many countries around the world.
