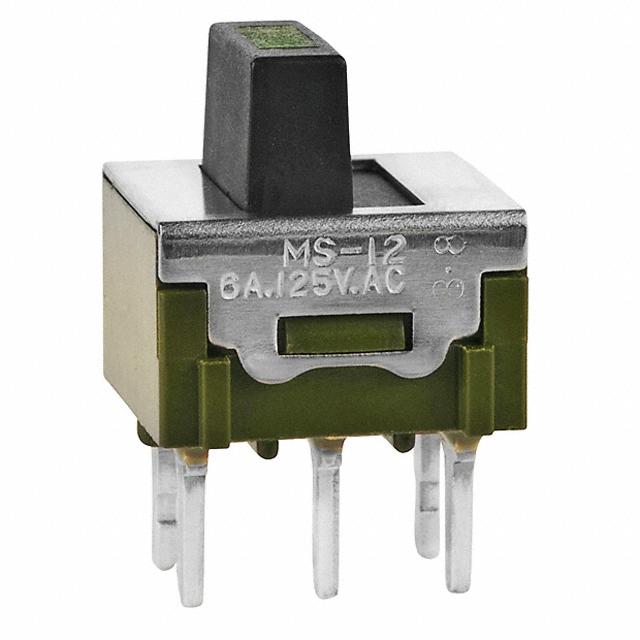

NKK Switches MS12LNW03F

MS12LNW03F NKK Switches
NKK Switches

Product Information

Operating Force:
-
HTSUS:
8536.50.9050
RoHS Status:
RoHS non-compliant
Electrical Life:
25,000 Cycles
Termination Style:
PC Pin
Operating Temperature:
-30°C ~ 85°C
Mechanical Life:
100,000 Cycles
Actuator Length:
5.10mm
title:
MS12LNW03F
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
edacadModel:
MS12LNW03F Models
edacadModelUrl:
/en/models/1056573
Manufacturer:
NKK Switches
Switch Function:
On-On
Contact Finish:
Silver
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPDT
Current Rating (Amps):
6A (AC)
Contact Timing:
Non-Shorting (BBM)
Features:
Epoxy Sealed Terminals
Mounting Type:
Through Hole
Series:
MS
Packaging:
Tray
Switch Travel:
2.20mm
Actuator Type:
Illuminated
Contact Material:
Silver Alloy
Actuator Material:
Polybutylene Terephthalate (PBT), Glass Filled
Base Product Number:
MS12LNW03
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is MS12LNW03F. It is assigned with possible HTSUS value of 8536.50.9050. The product is rohs non-compliant. The product offers long-lasting services of 25,000 cycles. Moreover, it has pc pin terminal style. The product has -30°c ~ 85°c operating temperature range. The product also provide mechanical stability with 100,000 cycles. The actuator is a 5.10mm long. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. The nkk switches's product offers user-desired applications. It is designed as a on-on switching function. Furthermore, the product is galvanized with excellent silver contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spdt circuit. Additionally, the product's output is 6a (ac). Contact Timing Options: non-shorting (bbm). The splendid features of the product include epoxy sealed terminals. The product is available in through hole configuration. The product ms, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The product has a switching travel of 2.20mm. The product carries illuminated actuator. The product is made from sturdy silver alloy materials. The actuator is designed from sturdy polybutylene terephthalate (pbt), glass filled material. Moreover, it corresponds to ms12lnw03, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
pdf icon
Multiple Series Marking 07/Feb/2016(PCN Assembly/Origin)
pdf icon
MS/SS - Appearance chg 30/NOV/2021(PCN Design/Specification)
pdf icon
MS Series Movable Contact Matl 02/Mar/2012(PCN Design/Specification)
pdf icon
Obsolete 09/MAY/2023(PCN Obsolescence/ EOL)
pdf icon
MS Series Datasheet(Datasheets)
