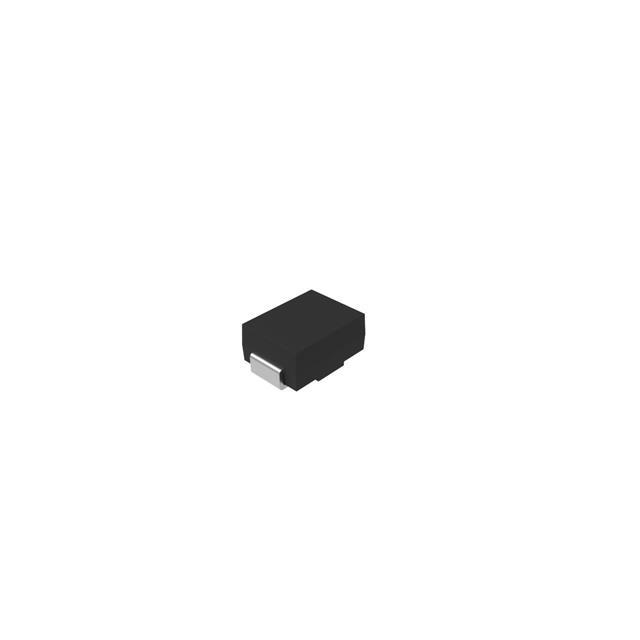

Micro Commercial Co SMBJ5956BHE3-TP

SMBJ5956BHE3-TP Micro Commercial Co
Micro Commercial Co

Product Information

HTSUS:
8541.10.0050
Package / Case:
DO-214AA, SMB
Operating Temperature:
-55°C ~ 150°C (TJ)
Impedance (Max) (Zzt):
1200 Ohms
Tolerance:
±5%
REACH Status:
REACH Unaffected
Voltage - Zener (Nom) (Vz):
200 V
Voltage - Forward (Vf) (Max) @ If:
1.5 V @ 200 mA
Package:
Bulk
Qualification:
AEC-Q101
standardLeadTime:
22 Weeks
Current - Reverse Leakage @ Vr:
1 µA @ 152 V
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
-
Supplier Device Package:
DO-214AA (SMB)
Power - Max:
1.5 W
Base Product Number:
SMBJ5956
ECCN:
EAR99
Checking for live stock

This is manufactured by Micro Commercial Co. The manufacturer part number is SMBJ5956BHE3-TP. It is assigned with possible HTSUS value of 8541.10.0050. Moreover, the product comes in do-214aa, smb. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, 1200 ohms is the maximum impedance value of the product. It features ±5% of tolerance value. In addition, it is reach unaffected. The nominal voltage of the Zener includes 200 v. The product has a maximum forward voltage of 1.5 v @ 200 ma. It is shipped in bulk package . It has a long 22 weeks standard lead time. 1 µa @ 152 v is the reverse leakage value of a bespoke product. The product is available in surface mount configuration. The product is automotive, a grade of class. do-214aa (smb) is the supplier device package value. The maximum power of the product is 1.5 w. Moreover, it corresponds to smbj5956, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
SMBJ5925BHE3 - SMBJ5956BHE3(Datasheets)
pdf icon
Halogen by Pkg Type 02/Sep/2023(PCN Design/Specification)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SMBJ5956BHE3-TP on website for other similar products.
We accept all major payment methods for all products including ET24773680. Please check your shopping cart at the time of order.
You can order Micro Commercial Co brand products with SMBJ5956BHE3-TP directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Micro Commercial Co SMBJ5956BHE3-TP. You can also check on our website or by contacting our customer support team for further order details on Micro Commercial Co SMBJ5956BHE3-TP.
