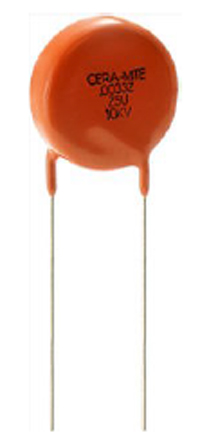

Vishay Single Layer Ceramic Capacitor (SLCC) 3.3nF 10kV dc -20 → +80% Z5U Dielectric 615R Series

Enrgtech Part No: ET16721736
|
Manufacturer Part No:
615R100GAD33
|
Manufacturer: Vishay

615R100GAD33 Vishay Single Layer Ceramic Capacitor (SLCC) 3.3nF 10kV dc -20 → +80% Z5U Dielectric 615R Series

Product Information

Diameter:

24.9mm

Suppression Class:

Class II

Dimensions:

24.9 (Dia.) x 56.9mm

Mounting Type:

Through Hole

Series:

615R

Dissipation Factor:

Capacitance:

3.3nF

Depth:

9.9mm

Voltage:

10kV dc

Minimum Operating Temperature:

-25°C

Dielectric:

Z5U

Maximum Operating Temperature:

+105°C

Checking for live stock

This is Single Layer Ceramic Capacitor (SLCC) 3.3nF 10kV dc -20 → +80% Z5U Dielectric 615R Series manufactured by Vishay. The manufacturer part number is 615R100GAD33. Its diameter is 24.9mm. It is a class ii suppression class. The given dimensions of the product include 24.9 (dia.) x 56.9mm. The product is available in through hole configuration. The product 615r, is a highly preferred choice for users. It provides a dissipation factor of 2%. It provides a 3.3nf of capacitance value. The product comes in 9.9mm depth. It carries a 10kv dc of voltage. Whereas, the minimum operating temperature of the product is -25°c. The dielectric options include z5u. It has a maximum operating temperature of +105°c. It features -20 → +80% of tolerance value. The terminal is a radial type. Whereas its dielectric material family is ceramic.

Vishay High Voltage Ceramic Capacitor Datasheet(Technical Reference)

Your Rating

Reviews

Be the first to review.

Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search 615R100GAD33 on website for other similar products.

We accept all major payment methods for all products including ET16721736. Please check your shopping cart at the time of order.

You can order Vishay brand products with 615R100GAD33 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Single Layer Ceramic Capacitors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Vishay Single Layer Ceramic Capacitor (SLCC) 3.3nF 10kV dc -20 → +80% Z5U Dielectric 615R Series. You can also check on our website or by contacting our customer support team for further order details on Vishay Single Layer Ceramic Capacitor (SLCC) 3.3nF 10kV dc -20 → +80% Z5U Dielectric 615R Series.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16721736 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16721736.

Yes. We ship 615R100GAD33 Internationally to many countries around the world.
