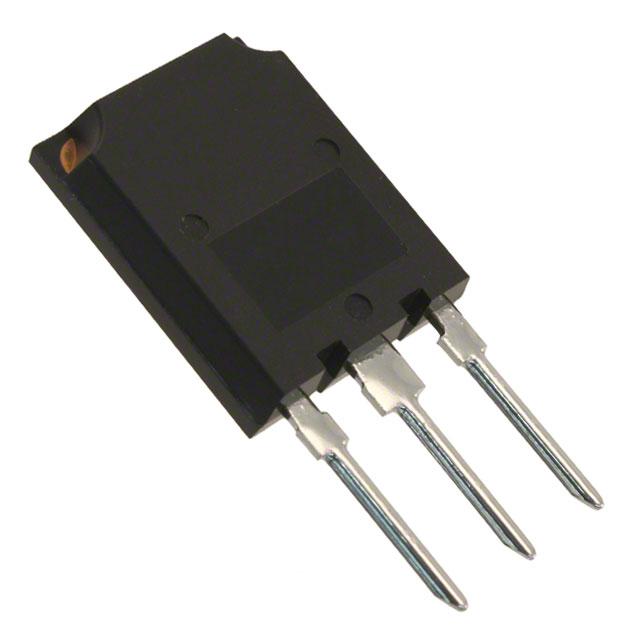

Infineon Technologies IRG7PSH73K10PBF

IRG7PSH73K10PBF Infineon Technologies
Infineon Technologies

Product Information

Current - Collector (Ic) (Max):
220 A
HTSUS:
8541.29.0095
Switching Energy:
7.7mJ (on), 4.6mJ (off)
Vce(on) (Max) @ Vge, Ic:
2.3V @ 15V, 75A
Voltage - Collector Emitter Breakdown (Max):
1200 V
Td (on/off) @ 25°C:
63ns/267ns
Operating Temperature:
-55°C ~ 175°C (TJ)
Input Type:
Standard
Package / Case:
TO-274AA
Gate Charge:
360 nC
REACH Status:
REACH Unaffected
Test Condition:
600V, 75A, 4.7Ohm, 15V
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
IGBT Type:
Trench
Current - Collector Pulsed (Icm):
225 A
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
SUPER-247™ (TO-274AA)
Power - Max:
1150 W
Base Product Number:
IRG7PSH
ECCN:
EAR99
Checking for live stock

This is manufactured by Infineon Technologies. The manufacturer part number is IRG7PSH73K10PBF. The maximum collector current includes 220 a. It is assigned with possible HTSUS value of 8541.29.0095. Provide switching energy up to 7.7mj (on), 4.6mj (off). Features 2.3v @ 15v, 75a. The maximum collector emitter breakdown voltage of the product is 1200 v. Td (on/off) value of 63ns/267ns. The product has -55°c ~ 175°c (tj) operating temperature range. It carries standard input type. Moreover, the product comes in to-274aa. Features 360 nc gate charge. In addition, it is reach unaffected. Test condition included 600v, 75a, 4.7ohm, 15v. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). Features an IGBT trench type. With a current - collector pulsed of [Current - Collector Pulsed (lcm)] . The product is available in through hole configuration. super-247™ (to-274aa) is the supplier device package value. The maximum power of the product is 1150 w. Moreover, it corresponds to irg7psh, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Part Number Guide(Other Related Documents)
pdf icon
Package Drawing Update 19/Aug/2015(PCN Packaging)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search IRG7PSH73K10PBF on website for other similar products.
We accept all major payment methods for all products including ET11348382. Please check your shopping cart at the time of order.
You can order Infineon Technologies brand products with IRG7PSH73K10PBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single IGBTs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon Technologies IRG7PSH73K10PBF. You can also check on our website or by contacting our customer support team for further order details on Infineon Technologies IRG7PSH73K10PBF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11348382 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Infineon Technologies" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11348382.
Yes. We ship IRG7PSH73K10PBF Internationally to many countries around the world.
