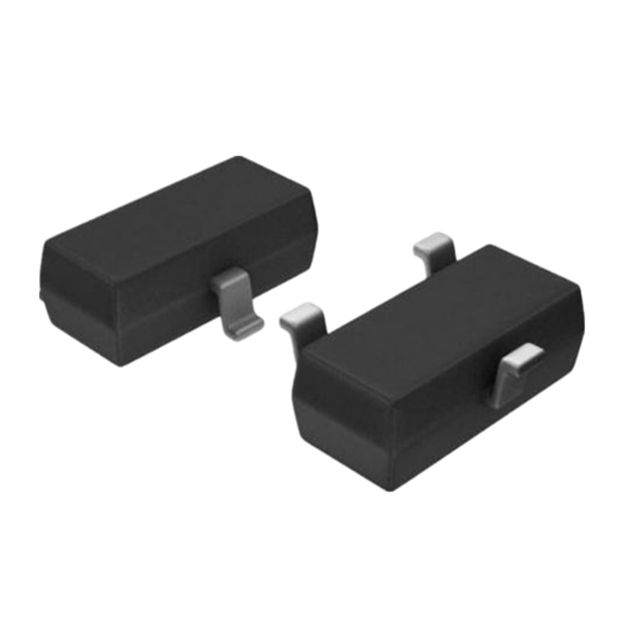

NextGen Components P-Channel Single FET, 20 V Surface Mount, SOT-23

Enrgtech Part No: ET26372181
|
Manufacturer Part No:
MDD2305
|
Manufacturer: NextGen Components

MDD2305 NextGen Components P-Channel Single FET, 20 V Surface Mount, SOT-23

Product Information

HTSUS:

8541.21.0095

RoHS Status:

RoHS Compliant

Operating Temperature:

-55°C ~ 150°C (TJ)

Package / Case:

SOT-23-3

Rds On (Max) @ Id, Vgs:

48mOhm @ 3A, 4.5V

title:

MDD2305

Vgs(th) (Max) @ Id:

1V @ 250µA

REACH Status:

REACH Unaffected

FET Type:

P-Channel

Drive Voltage (Max Rds On, Min Rds On):

4.5V, 3.3V

Drain to Source Voltage (Vdss):

20 V

Vgs (Max):

±10V

Checking for live stock

The NextGen Components MDD2305 is a P-Channel enhancement-mode MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor). It is designed for surface mount applications and has a voltage rating of 20V. This type of transistor is commonly used in electronic circuits to switch or amplify electronic signals. Housed in a compact SOT-23 package, the MDD2305 is well-suited for space-constrained designs. Its P-Channel configuration allows for simpler high-side switching applications as it is turned on by a negative gate-source voltage (Vgs).

Benefits of Buying NextGen Components MDD2305 Single FET:

Opting for the NextGen Components MDD2305 P-Channel FET offers several advantages for circuit designers. Its P-Channel nature simplifies the implementation of high-side switches, often eliminating the need for complex gate drive circuitry and reducing the overall cost and complexity of the design. The low gate threshold voltage ensures that the MOSFET can be easily driven by common logic levels, enhancing compatibility with a wide range of control circuits. Additionally, the fast switching characteristics contribute to improved efficiency in power-switching applications.
