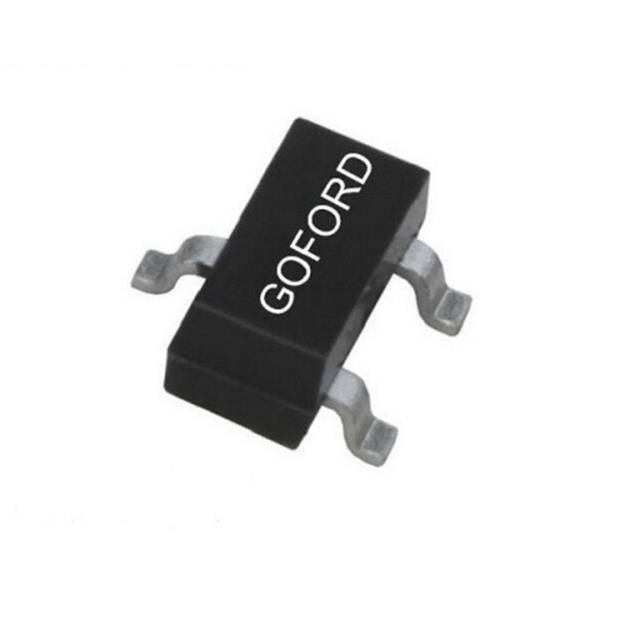

Goford Semiconductor 03N06L

03N06L Goford Semiconductor
Goford Semiconductor

Product Information

FET Feature:
-
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-236-3, SC-59, SOT-23-3
Rds On (Max) @ Id, Vgs:
80mOhm @ 2A, 10V
title:
03N06L
Vgs(th) (Max) @ Id:
1.2V @ 250µA
REACH Status:
REACH Unaffected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
Drain to Source Voltage (Vdss):
60 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Power Dissipation (Max):
1.7W (Tc)
standardLeadTime:
8 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
458 pF @ 30 V
Mounting Type:
Surface Mount
Series:
TrenchFET®
Gate Charge (Qg) (Max) @ Vgs:
14.6 nC @ 10 V
Supplier Device Package:
SOT-23-3
Packaging:
Tape & Reel (TR)
Current - Continuous Drain (Id) @ 25°C:
3A (Tc)
Technology:
MOSFET (Metal Oxide)
ECCN:
EAR99
Checking for live stock

This is manufactured by Goford Semiconductor. The manufacturer part number is 03N06L. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-236-3, sc-59, sot-23-3. It has a maximum Rds On and voltage of 80mohm @ 2a, 10v. The typical Vgs (th) (max) of the product is 1.2v @ 250µa. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. The product has a 60 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 3 (168 hours). The product carries maximum power dissipation 1.7w (tc). It has a long 8 weeks standard lead time. The product's input capacitance at maximum includes 458 pf @ 30 v. The product is available in surface mount configuration. The product trenchfet®, is a highly preferred choice for users. The maximum gate charge and given voltages include 14.6 nc @ 10 v. sot-23-3 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The continuous current drain at 25°C is 3a (tc). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.
