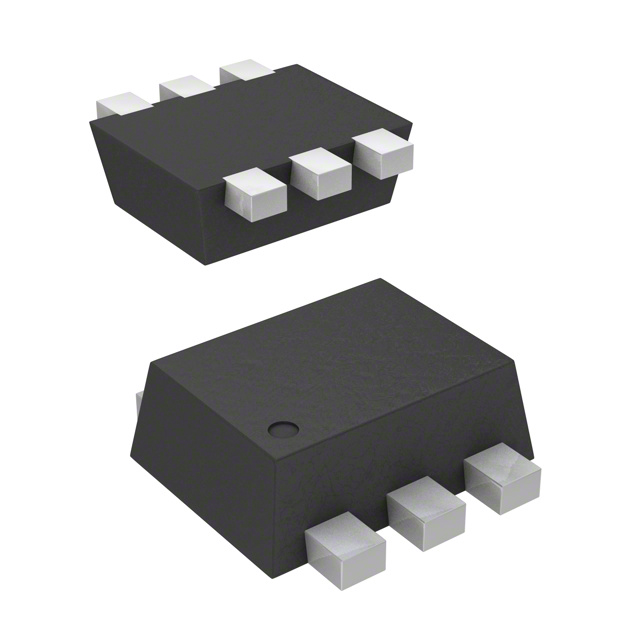

Central Semiconductor Corp CMLM8205 TR

CMLM8205-TR Central Semiconductor Corp CMLM8205 TR
Central Semiconductor Corp

Product Information

FET Feature:
Schottky Diode (Isolated)
HTSUS:
8541.21.0095
Vgs(th) (Max) @ Id:
2.5V @ 250µA
Operating Temperature:
-65°C ~ 150°C (TJ)
Package / Case:
SOT-563, SOT-666
Rds On (Max) @ Id, Vgs:
2.5Ohm @ 500mA, 10V
title:
CMLM8205 TR
REACH Status:
REACH Unaffected
FET Type:
P-Channel
Drive Voltage (Max Rds On, Min Rds On):
5V, 10V
Drain to Source Voltage (Vdss):
50 V
Vgs (Max):
20V
Power Dissipation (Max):
150mW (Ta)
Input Capacitance (Ciss) (Max) @ Vds:
70 pF @ 25 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-563
Packaging:
Tape & Reel (TR)
Current - Continuous Drain (Id) @ 25°C:
280mA (Ta)
Technology:
MOSFET (Metal Oxide)
ECCN:
EAR99
Checking for live stock

This is manufactured by Central Semiconductor Corp. The manufacturer part number is CMLM8205 TR. The FET features of the product include schottky diode (isolated). It is assigned with possible HTSUS value of 8541.21.0095. The typical Vgs (th) (max) of the product is 2.5v @ 250µa. The product has -65°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in sot-563, sot-666. It has a maximum Rds On and voltage of 2.5ohm @ 500ma, 10v. In addition, it is reach unaffected. It carries FET type p-channel. The drive voltage (maximum and minimum Rds On) of the product includes 5v, 10v. The product has a 50 v drain to source voltage. The maximum Vgs rate is 20v. The product carries maximum power dissipation 150mw (ta). The product's input capacitance at maximum includes 70 pf @ 25 v. The product is available in surface mount configuration. sot-563 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The continuous current drain at 25°C is 280ma (ta). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.

pdf icon
CMLM8205 22/Feb/2022(PCN Obsolescence/ EOL)
pdf icon
CMLM8205(Datasheets)
pdf icon
RoHS Cert(Environmental Information)
