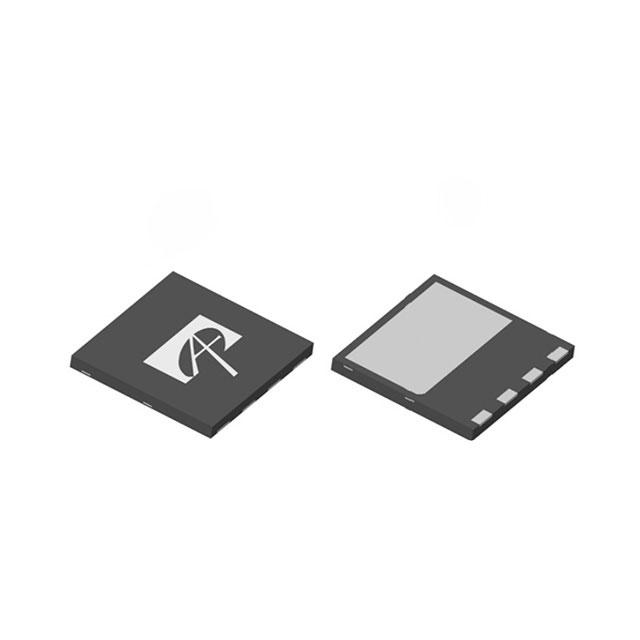

Alpha & Omega Semiconductor Inc. AOV15S60

AOV15S60 Alpha & Omega Semiconductor Inc.
Alpha & Omega Semiconductor Inc.

Product Information

Detailed Description:
N-Channel 600V 520mA (Ta), 12A (Tc) 8.3W (Ta), 208W (Tc) Surface Mount 4-DFN-EP (8x8)
Vgs(th) (Max) @ Id:
3.8V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
4-PowerTSFN
Base Part Number:
AOV15
Gate Charge (Qg) (Max) @ Vgs:
15.6nC @ 10V
Rds On (Max) @ Id, Vgs:
360mOhm @ 7.5A, 10V
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Manufacturer:
Alpha & Omega Semiconductor Inc.
Drain to Source Voltage (Vdss):
600V
Vgs (Max):
±30V
Input Capacitance (Ciss) (Max) @ Vds:
717pF @ 100V
Mounting Type:
Surface Mount
Series:
aMOS™
Supplier Device Package:
4-DFN-EP (8x8)
Packaging:
Cut Tape (CT)
Current - Continuous Drain (Id) @ 25°C:
520mA (Ta), 12A (Tc)
Customer Reference:
Power Dissipation (Max):
8.3W (Ta), 208W (Tc)
Technology:
MOSFET (Metal Oxide)
Checking for live stock

This is manufactured by Alpha & Omega Semiconductor Inc.. The manufacturer part number is AOV15S60. It features n-channel 600v 520ma (ta), 12a (tc) 8.3w (ta), 208w (tc) surface mount 4-dfn-ep (8x8). The typical Vgs (th) (max) of the product is 3.8v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 4-powertsfn. Base Part Number: aov15. The maximum gate charge and given voltages include 15.6nc @ 10v. It has a maximum Rds On and voltage of 360mohm @ 7.5a, 10v. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 10v. The alpha & omega semiconductor inc.'s product offers user-desired applications. The product has a 600v drain to source voltage. The maximum Vgs rate is ±30v. The product's input capacitance at maximum includes 717pf @ 100v. The product is available in surface mount configuration. The product amos™, is a highly preferred choice for users. 4-dfn-ep (8x8) is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. The continuous current drain at 25°C is 520ma (ta), 12a (tc). The product carries maximum power dissipation 8.3w (ta), 208w (tc). This product use mosfet (metal oxide) technology.

pdf icon
AOV15S60(Datasheets)
pdf icon
Alpha & Omega RoHS3(Environmental Information)
pdf icon
AOS Green Policy(Other Related Documents)
pdf icon
Change pin 29/Dec/2020(PCN Packaging)
