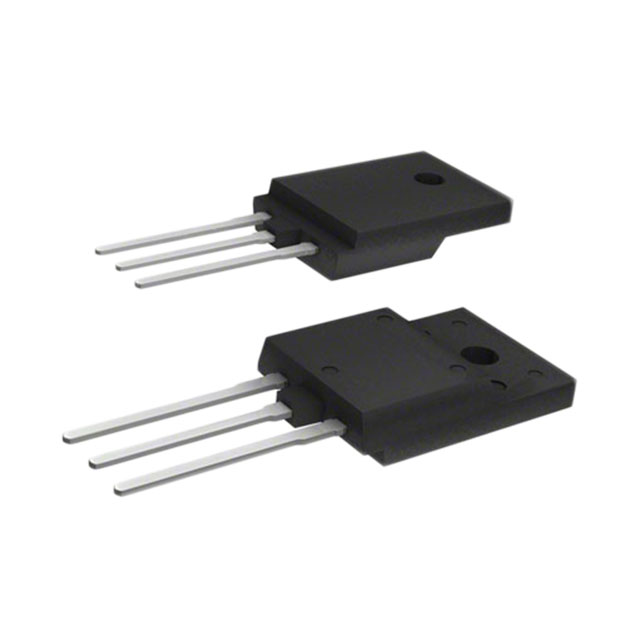

Infineon Technologies IPA60R120P7XKSA1

IPA60R120P7XKSA1 Infineon Technologies
IPA60R120P7XKSA1
Infineon Technologies

Product Information

FET Feature:
-
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-220-3 Full Pack
Rds On (Max) @ Id, Vgs:
120mOhm @ 8.2A, 10V
Gate Charge (Qg) (Max) @ Vgs:
36 nC @ 10 V
Vgs(th) (Max) @ Id:
4V @ 410µA
REACH Status:
REACH Unaffected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Drain to Source Voltage (Vdss):
600 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
Not Applicable
Power Dissipation (Max):
28W (Tc)
standardLeadTime:
17 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
1544 pF @ 400 V
Mounting Type:
Through Hole
Series:
CoolMOS™ P7
Supplier Device Package:
PG-TO220 Full Pack
Packaging:
Tube
Current - Continuous Drain (Id) @ 25°C:
26A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
IPA60R
ECCN:
EAR99
Checking for live stock

This is manufactured by Infineon Technologies. The manufacturer part number is IPA60R120P7XKSA1. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-220-3 full pack. It has a maximum Rds On and voltage of 120mohm @ 8.2a, 10v. The maximum gate charge and given voltages include 36 nc @ 10 v. The typical Vgs (th) (max) of the product is 4v @ 410µa. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 10v. The product has a 600 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is not applicable. The product carries maximum power dissipation 28w (tc). It has a long 17 weeks standard lead time. The product's input capacitance at maximum includes 1544 pf @ 400 v. The product is available in through hole configuration. The product coolmos™ p7, is a highly preferred choice for users. pg-to220 full pack is the supplier device package value. In addition, tube is the available packaging type of the product. The continuous current drain at 25°C is 26a (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to ipa60r, a base product number of the product. The product is designated with the ear99 code number.
