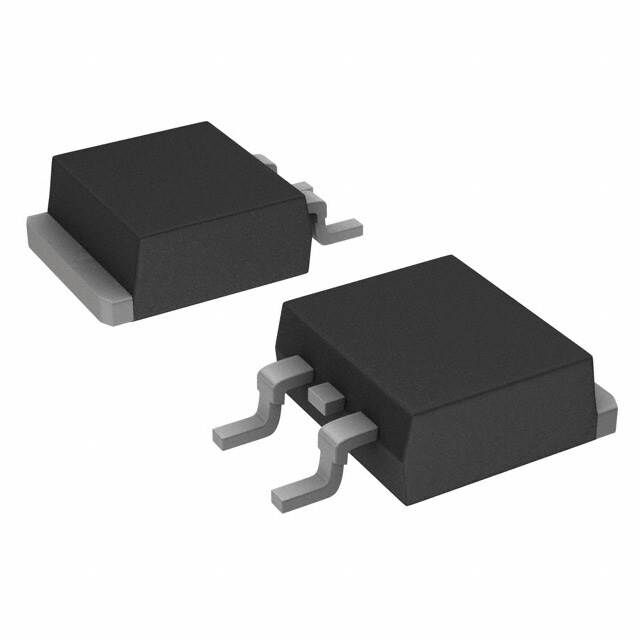

Vishay Siliconix SQR40N10-25_GE3

Enrgtech Part No: ET12916983
|
Manufacturer Part No:
SQR40N10-25_GE3
|
Manufacturer: Vishay Siliconix

Product Information

FET Feature:

HTSUS:

8541.29.0095

RoHS Status:

ROHS3 Compliant

Operating Temperature:

-55°C ~ 175°C (TJ)

Package / Case:

TO-252-4, DPAK (3 Leads + Tab)

Rds On (Max) @ Id, Vgs:

25mOhm @ 40A, 10V

title:

SQR40N10-25_GE3

Vgs(th) (Max) @ Id:

2.5V @ 250µA

FET Type:

N-Channel

Drive Voltage (Max Rds On, Min Rds On):

4.5V, 10V

Drain to Source Voltage (Vdss):

100 V

Vgs (Max):

±20V

Checking for live stock

This is manufactured by Vishay Siliconix. The manufacturer part number is SQR40N10-25_GE3. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in to-252-4, dpak (3 leads + tab). It has a maximum Rds On and voltage of 25mohm @ 40a, 10v. The typical Vgs (th) (max) of the product is 2.5v @ 250µa. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. The product has a 100 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 136w (tc). The product's input capacitance at maximum includes 3380 pf @ 25 v. The product is available in surface mount configuration. The product trenchfet®, is a highly preferred choice for users. The maximum gate charge and given voltages include 70 nc @ 10 v. to-252 (dpak) reverse lead is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The continuous current drain at 25°C is 40a (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to sqr40, a base product number of the product. The product is designated with the ear99 code number.

SIL-044-2014-Rev-1 20/May/2014(PCN Assembly/Origin)

SQR40N10-25(Datasheets)

DPAK/D2PAK EOL 13/Jun/2024(PCN Obsolescence/ EOL)

New Ordering Code 19/Mar/2015(PCN Part Number)
