Maximum Continuous Drain Current:
30 A
Transistor Material:
Si
Width:
5.3mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
500 V
Maximum Gate Threshold Voltage:
6.5V

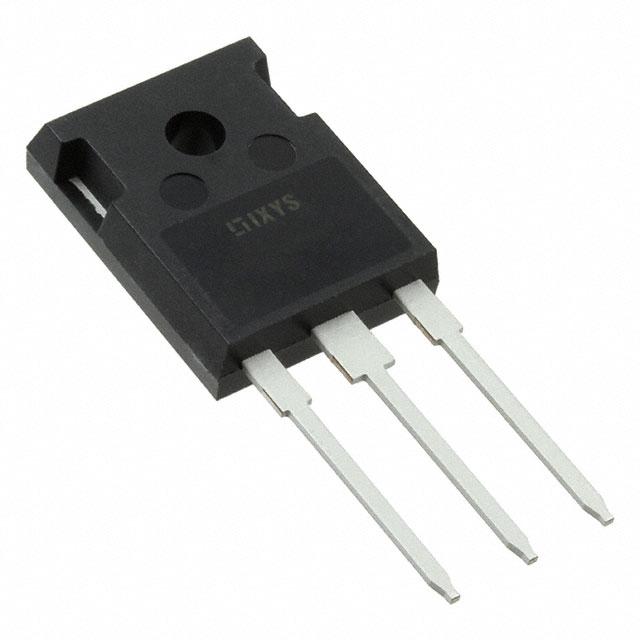

Package Type:
TO-247
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
62 nC @ 10 V
Channel Type:
N
Length:
16.26mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
690 W
Series:
HiperFET, Q3-Class
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
16.26mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
200 mΩ
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
6.5V @ 4mA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-247-3
Rds On (Max) @ Id, Vgs:
200mOhm @ 15A, 10V
Gate Charge (Qg) (Max) @ Vgs:
62 nC @ 10 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Package:
Tube
Drain to Source Voltage (Vdss):
500 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
690W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
3200 pF @ 25 V
standardLeadTime:
26 Weeks
Mounting Type:
Through Hole
Series:
HiPerFET™, Q3 Class
Supplier Device Package:
TO-247AD (IXFH)
Current - Continuous Drain (Id) @ 25°C:
30A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
IXFH30
ECCN:
EAR99
