Maximum Continuous Drain Current:
200 A
Transistor Material:
Si
Width:
10.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
40 V
Maximum Gate Threshold Voltage:
4V

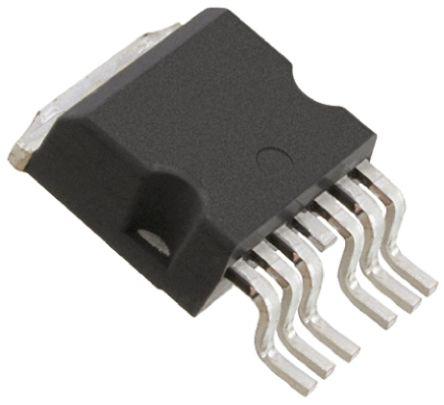

Package Type:
H2PAK
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
240 nC @ 10 V
Channel Type:
N
Length:
15.25mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
300 W
Series:
DeepGate, STripFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
4.8mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
1.3 mΩ
FET Feature:
-
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
TO-263-7, D2PAK (6 Leads + Tab)
Rds On (Max) @ Id, Vgs:
1.3mOhm @ 80A, 10V
title:
STH320N4F6-6
Vgs(th) (Max) @ Id:
4V @ 250µA
REACH Status:
REACH Unaffected
edacadModel:
STH320N4F6-6 Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
edacadModelUrl:
/en/models/4250522
Drain to Source Voltage (Vdss):
40 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
300W (Tc)
Qualification:
AEC-Q101
standardLeadTime:
26 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
13800 pF @ 15 V
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
DeepGATE™, STripFET™ VI
Gate Charge (Qg) (Max) @ Vgs:
240 nC @ 10 V
Supplier Device Package:
H2PAK-6
Packaging:
Tape & Reel (TR)
Current - Continuous Drain (Id) @ 25°C:
200A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
STH320
ECCN:
EAR99
