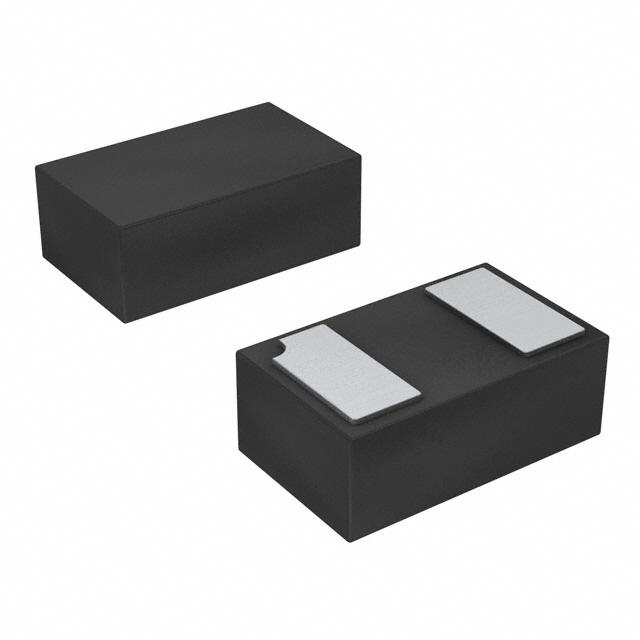

Panjit International Inc. SBA0520Q-AU_R1_000A1

SBA0520Q-AU_R1_000A1 Panjit International Inc.
Panjit International Inc.

Product Information

HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
0402 (1006 Metric)
Operating Temperature - Junction:
-55°C ~ 150°C
REACH Status:
REACH Unaffected
Current - Average Rectified (Io):
500mA
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
480 mV @ 500 mA
Voltage - DC Reverse (Vr) (Max):
20 V
Capacitance @ Vr, F:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Qualification:
AEC-Q101
standardLeadTime:
14 Weeks
Current - Reverse Leakage @ Vr:
100 µA @ 20 V
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
-
Supplier Device Package:
2-DFN (1x0.6)
Packaging:
Tape & Reel (TR)
Technology:
Schottky
Base Product Number:
SBA0520
ECCN:
EAR99
Checking for live stock

This is manufactured by Panjit International Inc.. The manufacturer part number is SBA0520Q-AU_R1_000A1. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in 0402 (1006 metric). The product operate at temperatures ranging from -55°c ~ 150°c. In addition, it is reach unaffected. It features a 500ma of average rectified current. It has a robust speed of fast recovery =< 500ns, > 200ma (io). The product has a maximum forward voltage of 480 mv @ 500 ma. While it has maximum reverse voltage of 20 v. Its typical moisture sensitivity level is 1 (unlimited). It has a long 14 weeks standard lead time. 100 µa @ 20 v is the reverse leakage value of a bespoke product. The product is available in surface mount configuration. The product is automotive, a grade of class. 2-dfn (1x0.6) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. This product use schottky technology. Moreover, it corresponds to sba0520, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
DFN Series SITE/Mult Changes 10/Feb/2023(PCN Assembly/Origin)
pdf icon
SBA0520Q-AU, SBA0530Q-AU, SBA0540Q-AU(Datasheets)
