Diameter:
42mm
Mounting Type:
Capsule
Diode Technology:
Silicon Junction
Peak Non-Repetitive Forward Surge Current:
9kA
Maximum Forward Voltage Drop:
1V
Maximum Continuous Forward Current:
945A
Rectifier Type:
General Purpose
Package Type:
DO-200AA
Number of Elements per Chip:
1
Diode Type:
Rectifier
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
1200V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
DO-200AB, A-PUK
Operating Temperature - Junction:
-40°C ~ 190°C
REACH Status:
REACH Unaffected
Current - Average Rectified (Io):
944A
Speed:
Standard Recovery >500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
1.45 V @ 1930 A
Package:
Box
Voltage - DC Reverse (Vr) (Max):
1200 V
Capacitance @ Vr, F:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
8 Weeks
Current - Reverse Leakage @ Vr:
15 mA @ 1200 V
Mounting Type:
Clamp On
Series:
-
Supplier Device Package:
W1
Technology:
Standard
Base Product Number:
W0944
ECCN:
EAR99

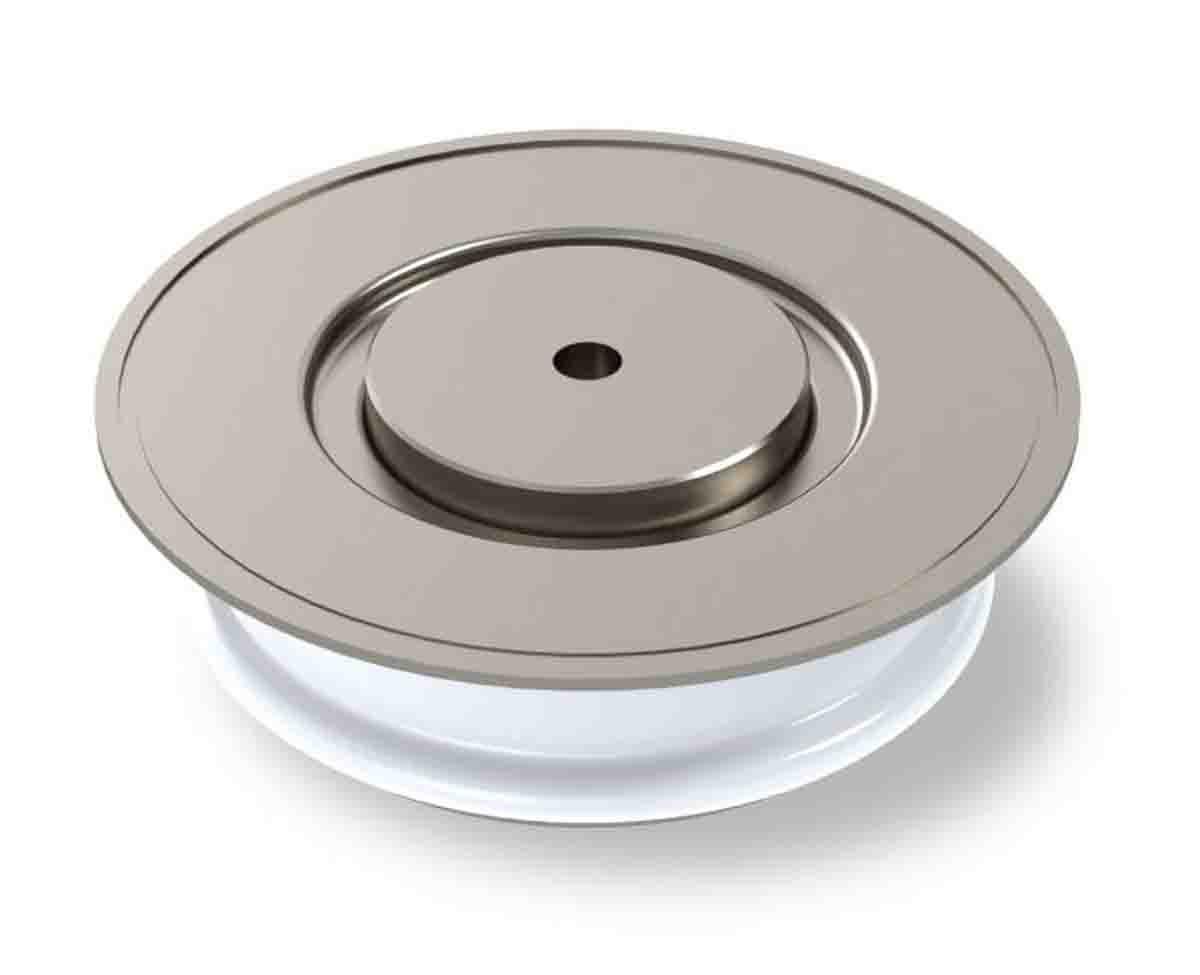

This is Capsule Diode 1200V 945A 2-Pin DO-200AA manufactured by IXYS. The manufacturer part number is W0944WC120. Its diameter is 42mm. The product is available in capsule configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 9ka peak non-repetitive forward surge current. It features 1v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 945a. This general purpose product is highly suited for various professionals in various settings. The package is a sort of do-200aa. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 1200v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in do-200ab, a-puk. The product operate at temperatures ranging from -40°c ~ 190°c. In addition, it is reach unaffected. It features a 944a of average rectified current. It has a robust speed of standard recovery >500ns, > 200ma (io). The product has a maximum forward voltage of 1.45 v @ 1930 a. It is shipped in box package . While it has maximum reverse voltage of 1200 v. Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. 15 ma @ 1200 v is the reverse leakage value of a bespoke product. The product is available in clamp on configuration. w1 is the supplier device package value. This product use standard technology. Moreover, it corresponds to w0944, a base product number of the product. The product is designated with the ear99 code number.
