Nexperia USA Inc. BCP56-16/DG/B2115

BCP56-16-DG-B2115 Nexperia USA Inc. BCP56-16/DG/B2115
Nexperia USA Inc.

Product Information

Current - Collector (Ic) (Max):
1 A
Voltage - Collector Emitter Breakdown (Max):
80 V
Operating Temperature:
150°C (TJ)

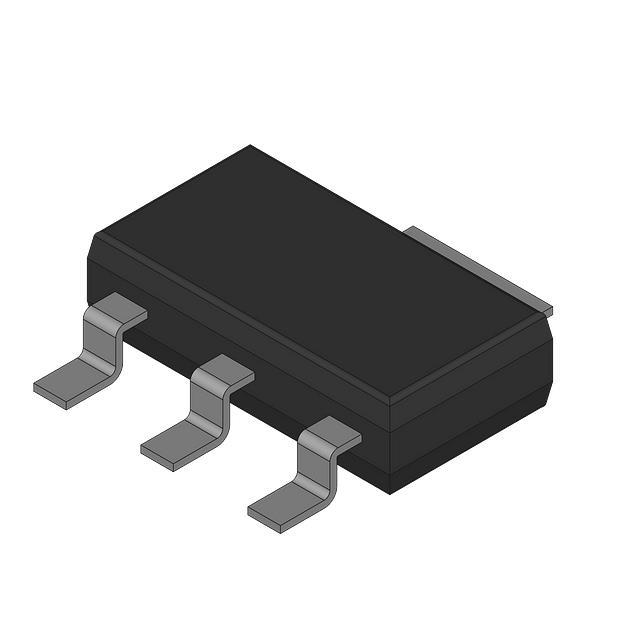

Package / Case:
TO-261-4, TO-261AA
DC Current Gain (hFE) (Min) @ Ic, Vce:
100 @ 150mA, 2V
Frequency - Transition:
180MHz
Vce Saturation (Max) @ Ib, Ic:
500mV @ 50mA, 500mA
REACH Status:
REACH Unaffected
Transistor Type:
NPN
Package:
Bulk
Moisture Sensitivity Level (MSL):
Vendor Undefined
Qualification:
-
Current - Collector Cutoff (Max):
100nA (ICBO)
Mounting Type:
Surface Mount
Grade:
-
Series:
BCP56
Supplier Device Package:
SC-73
Power - Max:
600 mW
Checking for live stock

This is manufactured by Nexperia USA Inc.. The manufacturer part number is BCP56-16/DG/B2115. The maximum collector current includes 1 a. The maximum collector emitter breakdown voltage of the product is 80 v. The product has 150°c (tj) operating temperature range. Moreover, the product comes in to-261-4, to-261aa. Furthermore, 100 @ 150ma, 2v is the minimum DC current gain at given voltage. The transition frequency of the product is 180mhz. The 500mv @ 50ma, 500ma is the maximum Vce saturation. In addition, it is reach unaffected. The transistor is a npn type. It is shipped in bulk package . Its typical moisture sensitivity level is vendor undefined. In addition, 100na (icbo) is the maximum current at collector cutoff. The product is available in surface mount configuration. The product bcp56, is a highly preferred choice for users. sc-73 is the supplier device package value. The maximum power of the product is 600 mw.
