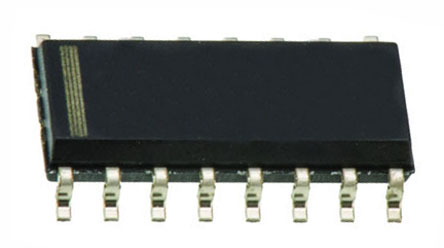

Texas Instruments SN74HC157DR

SN74HC157DR Texas Instruments
Texas Instruments

Product Information

Dimensions:
9.9 x 3.91 x 1.58mm
Mounting Type:
Surface Mount
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
16
Manufacturer Standard Lead Time:
35 Weeks
Base Part Number:
74HC157
Detailed Description:
Multiplexer 4 x 2:1 16-SOIC
Current - Output High, Low:
7.8mA, 7.8mA
Mounting Type:
Surface Mount
Series:
74HC
Operating Temperature:
-40°C ~ 85°C
Voltage Supply Source:
Single Supply
Packaging:
Cut Tape (CT)
Independent Circuits:
1
Voltage - Supply:
2V ~ 6V
Customer Reference:
Circuit:
4 x 2:1
Package / Case:
16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:
16-SOIC
Type:
Multiplexer
Manufacturer:
Texas Instruments
RoHs Compliant
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is SN74HC157DR. The given dimensions of the product include 9.9 x 3.91 x 1.58mm. The product is available in surface mount configuration. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It contains 16 pins. It has typical 35 weeks of manufacturer standard lead time. Base Part Number: 74hc157. It features multiplexer 4 x 2:1 16-soic. The high and low output current of the product is 7.8ma, 7.8ma. The product 74hc, is a highly preferred choice for users. The product has -40°c ~ 85°c operating temperature range. Gets power supply from single supply source. In addition, cut tape (ct) is the available packaging type of the product. Comprise 1 independent circuits. It has optimum voltage supply of 2v ~ 6v. It has an integral 4 x 2:1 circuit. Moreover, the product comes in 16-soic (0.154", 3.90mm width). 16-soic is the supplier device package value. It comes in multiplexer configuration. The texas instruments's product offers user-desired applications.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
Mult Dev A/T 16/Mar/2021(PCN Assembly/Origin)
pdf icon
SN54HC157, SN74HC157(Datasheets)
pdf icon
Mult Devices Font 21/Apr/2018(PCN Design/Specification)
