Dimensions:
10 x 6 x 5.65mm
Coil Voltage:
3V dc
Application:
Access & Transmission Equipment, Automotive Applications, Consumer Electronics, HVAC, Industrial Controls, Measurement & Test Equipment, Medical Equipment, Modems, Office & Business Equipment, Optical Network Terminals, Telecommunication
Terminal Type:
Through Hole
Coil Resistance:
64Ω
Life:
1000000000 (Mechanical) Operations, 500000 (Electrical) Operations
Standards Met:
UL
Coil Power:
140mW
Maximum Switching Voltage DC:
220V dc
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
1.8kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
DPDT
Depth:
6mm
Relay Switching Classification:
Non-Latching Relay
Features:
Bifurcated Contacts, Low Coil Power Consumption
Mounting Type:
PCB Mount
Series:
IM
Length:
10mm
Height:
5.2mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V ac
Maximum Switching Power AC:
62.5VA
Number of Poles:
2
Contact Material:
Gold Plated
HTSUS:
8536.49.0050
Package:
Tube
Series:
*
RoHS Status:
RoHS Compliant
ECCN:
EAR99

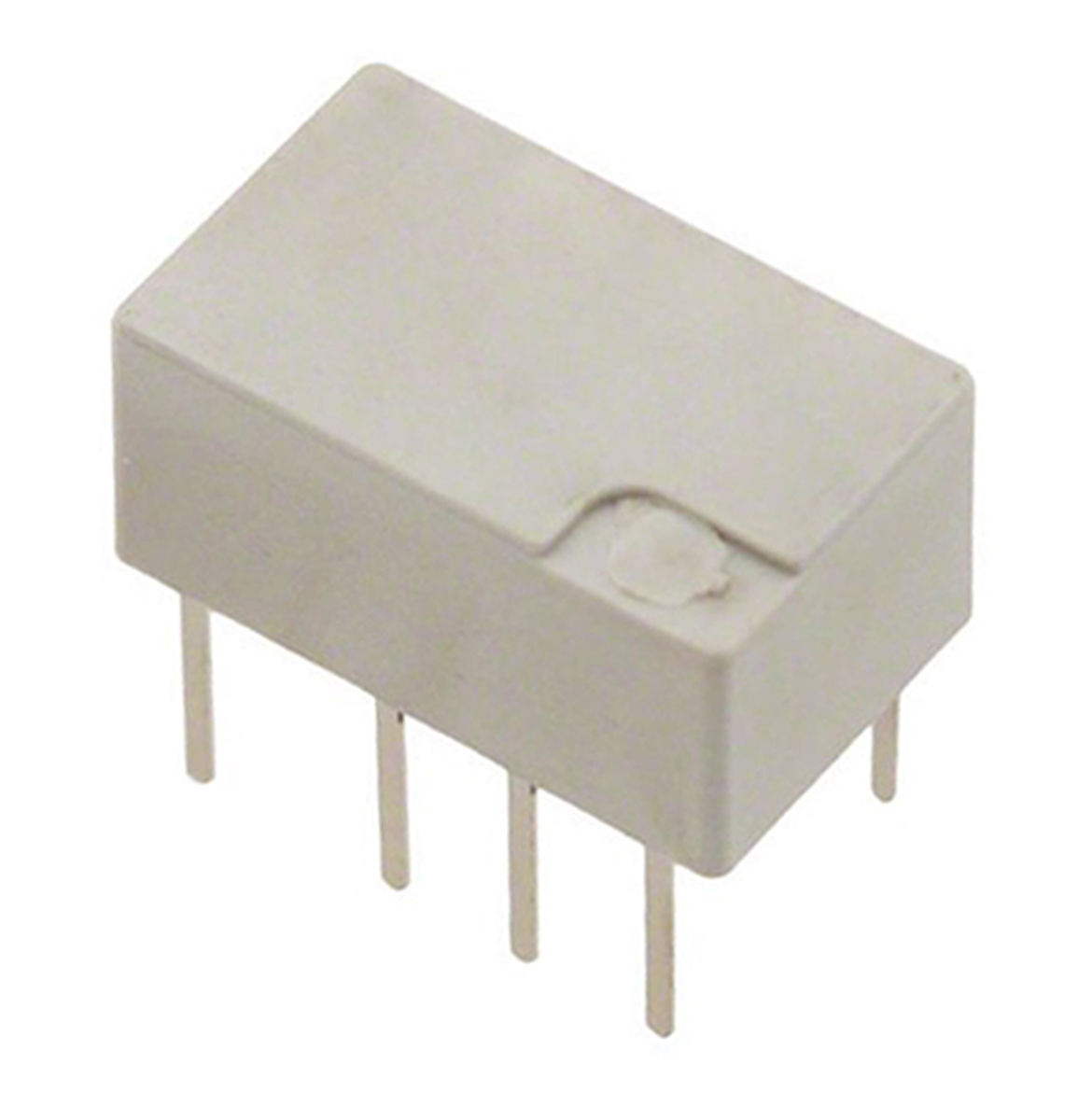

This is DPDT Non-Latching Relay PCB Mount 3V dc Coil 2 A Non-Latching Relay manufactured by TE Connectivity. The manufacturer part number is 1462037-4. The given dimensions of the product include 10 x 6 x 5.65mm. The coil voltage of the product is 3v dc. Applications Information involves access & transmission equipment, automotive applications, consumer electronics, hvac, industrial controls, measurement & test equipment, medical equipment, modems, office & business equipment, optical network terminals, telecommunication. The terminal is a through hole type. It holds up to 64ω coil resistance. It is capable of doing 1000000000 (mechanical) operations, 500000 (electrical) operations in a lifetime . The product complies with all safety standards, such as ul. Robust coil power of 140mw. While it carries 220v dc of maximum DC switching voltage. It bears a maximum 60 w of DC switching power. The product has 1.8kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 2a switching current. Whereas, the minimum operating temperature of the product is -40°c. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with dpdt configuration. The product comes in 6mm depth. It has a non-latching relay switching relay configuration . The splendid features of the product include bifurcated contacts, low coil power consumption. The product is available in pcb mount configuration. The product im, is a highly preferred choice for users. Its accurate length is 10mm. In addition, the height is 5.2mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 250v ac. It also features an AC switching power of 62.5va. It has equipped with 2 poles. The product is made from sturdy gold plated materials. It is assigned with possible HTSUS value of 8536.49.0050. It is shipped in tube package . The product is rohs compliant. The product is designated with the ear99 code number.
