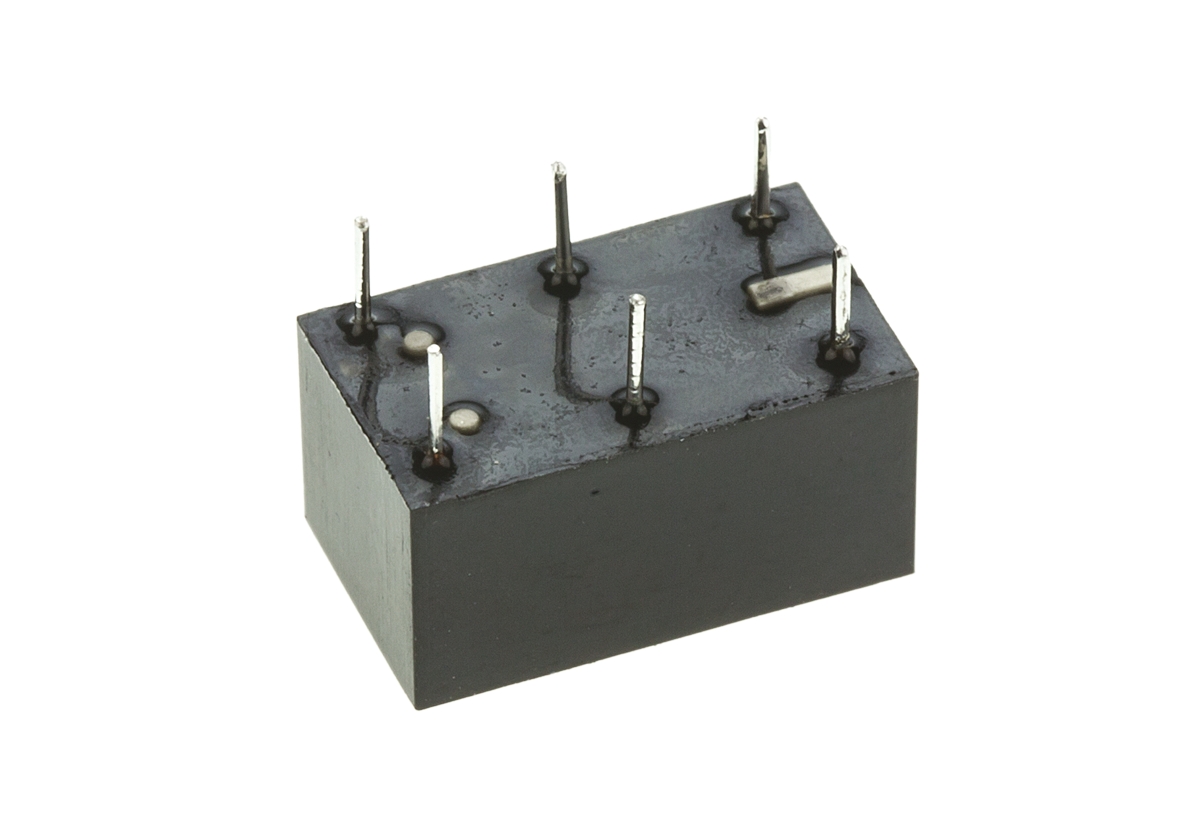

TE Connectivity SPDT PCB Mount Non-Latching Relay, 12V dc Coil

V23026A1002B201-1393774-8 TE Connectivity SPDT PCB Mount Non-Latching Relay, 12V dc Coil
V23026A1002B201 1393774-8
TE Connectivity

Product Information

Dimensions:
13 x 7.6 x 6.9mm
Mounting Type:
PCB Mount
Operating Temperature Range:
-40 → +85°C
Minimum Operating Temperature:
-40°C
Coil Voltage:
12V dc
Length:
13mm
Height:
6.9mm
Application:
Signal
Depth:
7.6mm
Maximum Switching Power DC:
30 W
Contact Configuration:
SPDT
Maximum Switching Power AC:
60 VA
Contact Material:
Gold Plated, Rhodium Plated Palladium Nickel
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Coil Resistance:
2.25 kΩ
RoHs Compliant
Checking for live stock

This is SPDT PCB Mount Non-Latching Relay 12V dc Coil manufactured by TE Connectivity. The manufacturer part number is V23026A1002B201 1393774-8. The given dimensions of the product include 13 x 7.6 x 6.9mm. The product is available in pcb mount configuration. The product has -40 → +85°c of operating temperature range. Whereas, the minimum operating temperature of the product is -40°c. The coil voltage of the product is 12v dc. Its accurate length is 13mm. In addition, the height is 6.9mm. Applications Information involves signal. The product comes in 7.6mm depth. It bears a maximum 30 w of DC switching power. The contact is equipped with spdt configuration. It also features an AC switching power of 60 va. The product is made from sturdy gold plated, rhodium plated palladium nickel materials. It has a maximum operating temperature of +85°c. The terminal is a through hole type. It holds up to 2.25 kω coil resistance.
