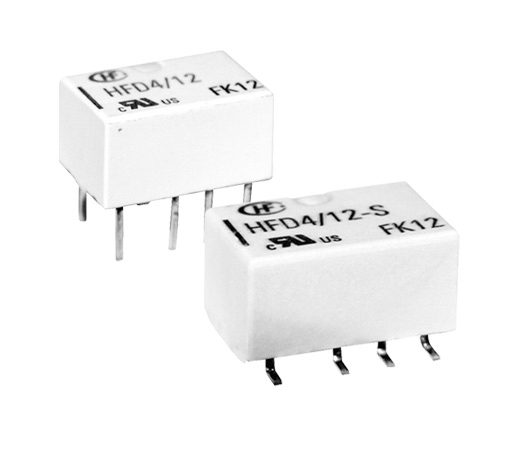

5 Volt Coil, DPDT Contacts, Fully Sealed

HFD4-005 5 Volt Coil, DPDT Contacts, Fully Sealed
Hongfa Europe GMBH

Product Information

Dimensions:
10 x 6.5 x 5.4mm
Electrical Life:
100000 Operations
Terminal Type:
Surface Mount
Coil Resistance:
178Ω
Life:
1 x 10^8 cycles
Coil Power:
140mW
Maximum Switching Voltage DC:
220V
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
1.8kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Maximum Switching Current AC:
2 A
Coil Voltage:
5V dc
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
DPST-2NO
Depth:
6.5mm
Relay Switching Classification:
Subminiature Signal Relay
Features:
Offers Excellent Board Space Savings, Low Power Consumption, Single Or Double Coil Winding Type Available
Mounting Type:
Surface Mount
Series:
HFD4
Length:
10mm
Height:
5.4mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
2
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is 5 Volt Coil DPDT Contacts Fully Sealed manufactured by Hongfa Europe GMBH. The manufacturer part number is HFD4/005. The given dimensions of the product include 10 x 6.5 x 5.4mm. The product offers long-lasting services of 100000 operations. The terminal is a surface mount type. It holds up to 178ω coil resistance. It is capable of doing 1 x 10^8 cycles in a lifetime . Robust coil power of 140mw. While it carries 220v of maximum DC switching voltage. It bears a maximum 60 w of DC switching power. The product has 1.8kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 2a switching current. It has a maximum 2 a switching current AC . The coil voltage of the product is 5v dc. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with dpst-2no configuration. The product comes in 6.5mm depth. It has a subminiature signal relay switching relay configuration . The splendid features of the product include offers excellent board space savings, low power consumption, single or double coil winding type available. The product is available in surface mount configuration. The product hfd4, is a highly preferred choice for users. Its accurate length is 10mm. In addition, the height is 5.4mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 62.5va. It has equipped with 2 poles. The product is made from sturdy gold plated materials.
