Dimensions:
10 x 6.5 x 5.4mm
Electrical Life:
100000 Operations
Terminal Type:
Through Hole
Coil Resistance:
2800Ω
Life:
1 x 10^8 cycles
Coil Power:
140mW
Maximum Switching Voltage DC:
220V
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
2.5kV ac
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Maximum Switching Current AC:
2 A
Coil Voltage:
24V dc
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
SPDT
Depth:
6.5mm
Relay Switching Classification:
Subminiature Signal Relay
Features:
Offers Excellent Board Space Savings, Low Power Consumption, Single Or Double Coil Winding Type Available
Mounting Type:
PCB Mount

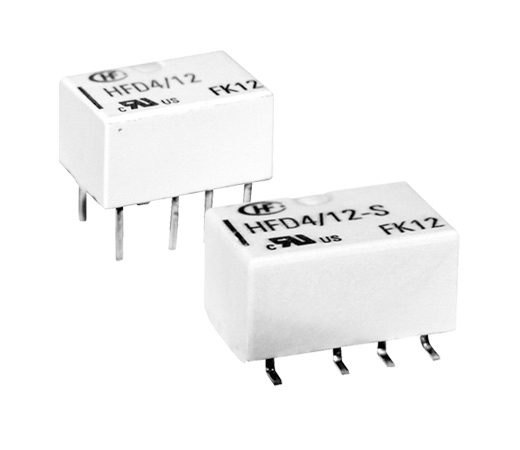

Series:
HFD4
Length:
10mm
Height:
5.4mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
1
Contact Material:
Gold Plated
