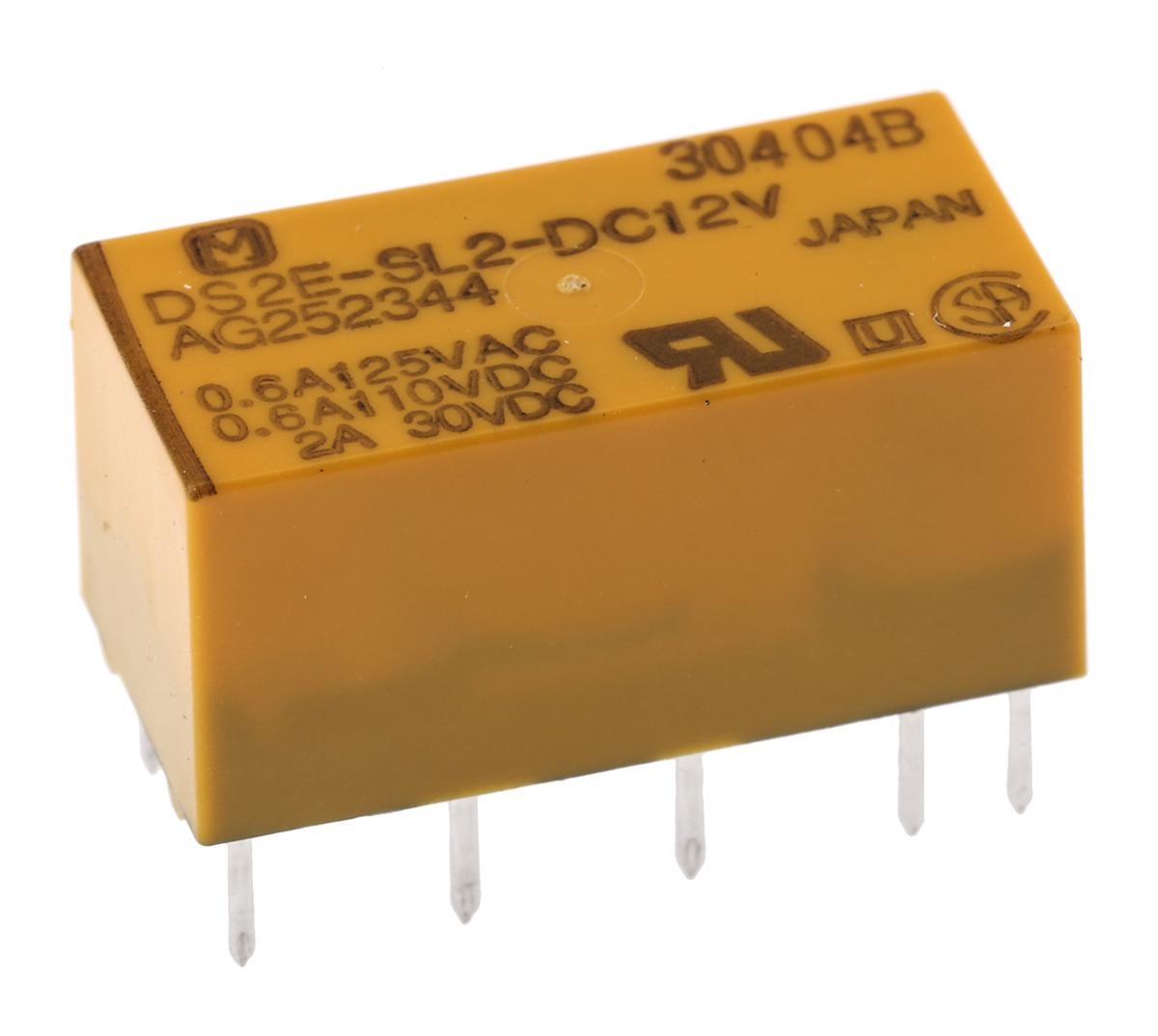

DPDT PCB Mount Latching Relay 3 A, 12V dc

DS2ESL212 DPDT PCB Mount Latching Relay 3 A, 12V dc
DS2ESL212
Panasonic

Product Information

Dimensions:
20 x 9.9 x 9.9mm
Coil Voltage:
12V dc
Terminal Type:
Through Hole
Coil Resistance:
800
Life:
100000000 (Mechanical) cycles
Coil Power:
180mW
Maximum Switching Voltage DC:
220V dc
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+70°C
Switching Current:
3A
Maximum Switching Current AC:
3 A
Operating Temperature Range:
-40 → +70°C
Latching:
Yes
Contact Configuration:
DPDT
Depth:
9.9mm
Mounting Type:
PCB Mount
Length:
20mm
Height:
9.9mm
Maximum Switching Current DC:
3 A
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
125VA
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is DPDT PCB Mount Latching Relay 3 A 12V dc manufactured by Panasonic. The manufacturer part number is DS2ESL212. The given dimensions of the product include 20 x 9.9 x 9.9mm. The coil voltage of the product is 12v dc. The terminal is a through hole type. It holds up to 800 <ohm/> coil resistance. It is capable of doing 100000000 (mechanical) cycles in a lifetime . Robust coil power of 180mw. While it carries 220v dc of maximum DC switching voltage. It bears a maximum 60 w of DC switching power. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +70°c. It is integrated with 3a switching current. It has a maximum 3 a switching current AC . The product has -40 → +70°c of operating temperature range. Latching Options - yes. The contact is equipped with dpdt configuration. The product comes in 9.9mm depth. The product is available in pcb mount configuration. Its accurate length is 20mm. In addition, the height is 9.9mm. It has a minimum 3 a DC switching current . It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 125va. The product is made from sturdy gold plated materials.

pdf icon
DS RELAYS Data Sheet(Technical Reference)
