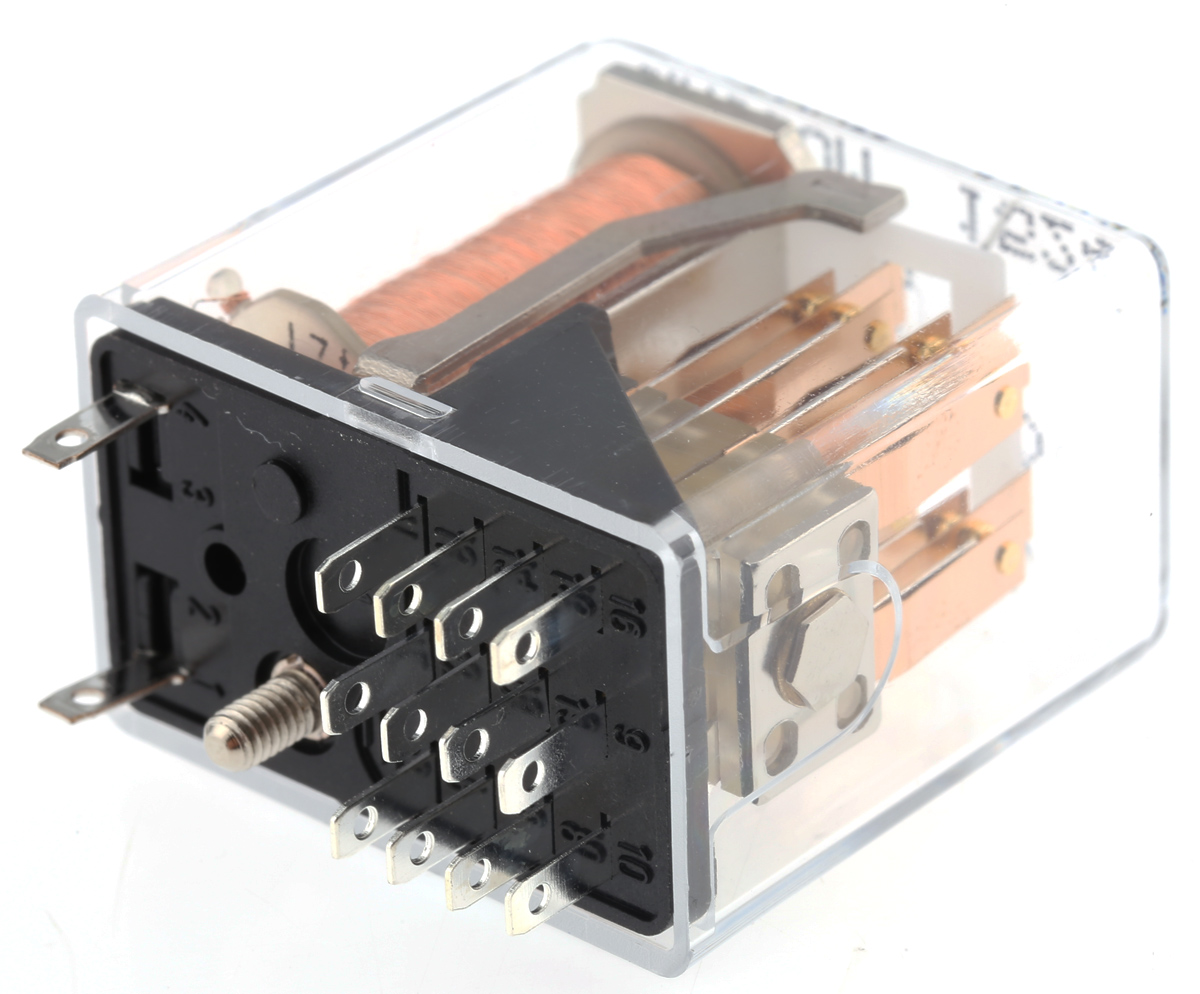

TE Connectivity 4PDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A

V23154D-421B110-3-1393807-7 TE Connectivity 4PDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A
V23154D 421B110 3-1393807-7
TE Connectivity

Product Information

Dimensions:
19 x 30 x 30mm
Coil Voltage:
24V dc
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
700Ω
Coil Power:
800mW
Maximum Switching Voltage DC:
150V dc
Maximum Switching Power DC:
70 W
Isolation Coil To Contact:
500V
Maximum Operating Temperature:
+70°C
Switching Current:
2A
Operating Temperature Range:
-40 → +70°C
Latching:
No
Contact Configuration:
SPDT
Length:
30mm
Features:
Multi Purpose Relay, Highly Reliable
Mounting Type:
Surface Mount
Series:
Cradle N
Depth:
19mm
Height:
30mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
125V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
50VA
Number of Poles:
2
Contact Material:
Silver Nickel Alloy
RoHs Compliant
Checking for live stock

This is 4PDT Non-Latching Relay PCB Mount 24V dc Coil 2 A manufactured by TE Connectivity. The manufacturer part number is V23154D 421B110 3-1393807-7. The given dimensions of the product include 19 x 30 x 30mm. The coil voltage of the product is 24v dc. Applications Information involves signal. The terminal is a through hole type. It holds up to 700ω coil resistance. Robust coil power of 800mw. While it carries 150v dc of maximum DC switching voltage. It bears a maximum 70 w of DC switching power. The product has 500v isolation coil to contact. It has a maximum operating temperature of +70°c. It is integrated with 2a switching current. The product has -40 → +70°c of operating temperature range. Latching Options - no. The contact is equipped with spdt configuration. Its accurate length is 30mm. The splendid features of the product include multi purpose relay, highly reliable. The product is available in surface mount configuration. The product cradle n, is a highly preferred choice for users. The product comes in 19mm depth. In addition, the height is 30mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 125v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 50va. It has equipped with 2 poles. The product is made from sturdy silver nickel alloy materials.
