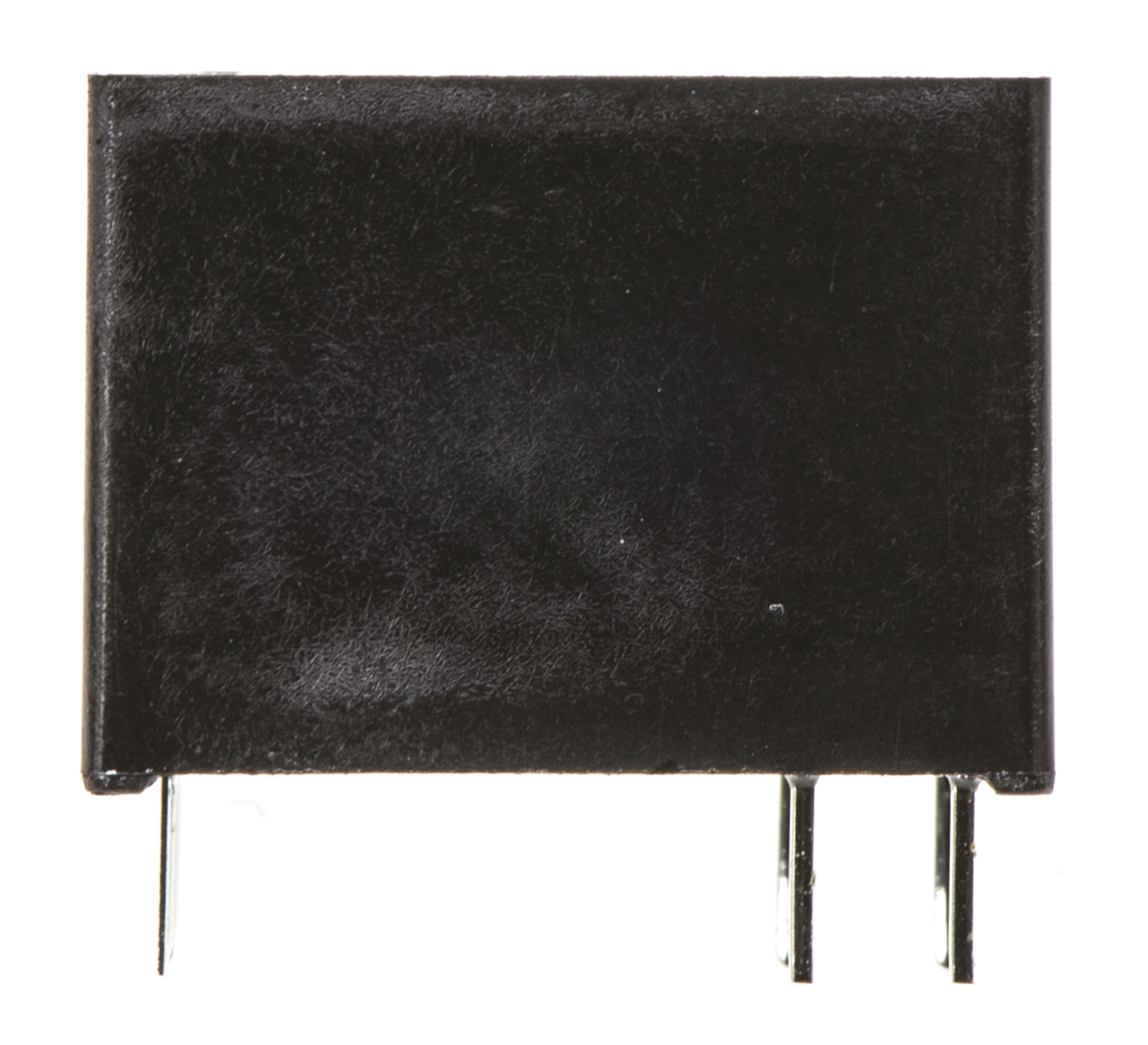

TE Connectivity V23101D7B201, SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 1 A

Enrgtech Part No: ET16721219
|
Manufacturer Part No:
V23101D7B201
|
Manufacturer: TE Connectivity

V23101D7B201 TE Connectivity , SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 1 A

Product Information

Dimensions:

15.4 x 11.5 x 10mm

Coil Voltage:

24V dc

Application:

Signal

Terminal Type:

Through Hole

Coil Resistance:

1280Ω

Life:

10000000 (Electrical) cycles, 10000000 (Mechanical) cycles

Coil Power:

450mW

Maximum Switching Voltage DC:

120V dc

Maximum Switching Power DC:

30 W

Isolation Coil To Contact:

1kV rms

Maximum Operating Temperature:

+85°C

Switching Current:

1.25A

Checking for live stock

The TE Connectivity V23101D7B201 is a compact, high-quality SPDT non-latching relay designed for reliable switching in low-power control applications. Featuring a 24V DC coil and a 1A contact rating, this PCB-mount relay is ideal for use in automotive, industrial, and consumer electronics within the UK market. Its miniature design and precise switching capabilities ensure consistent performance where space and efficiency are critical. The non-latching relay operates using a 24V DC coil that, when energised, shifts the internal contacts to switch between the normally open (NO) and normally closed (NC) positions. Once power is removed, the relay returns to its default state, making it perfect for momentary control systems.

Key Reasons to Choose the TE Connectivity V23101D7B201, SPDT Non-Latching Relay PCB Mount

This relay is engineered to provide dependable switching for low-current circuits, especially where compact PCB mounting is required. Its high mechanical durability and stable performance make it a preferred choice for designers looking for efficient, long-lasting control in automation or signal-switching systems.

Unique Features of the Product

SPDT (Single Pole Double Throw) contact configuration.
Non-latching function for momentary switching.
Compact design suitable for PCB mounting.
TE Connectivity’s robust and reliable build quality.

Unparallel Benefits of the V23101D7B201, SPDT Non-Latching Relay PCB Mount

Ideal for precision signal switching.
Space-saving design for compact PCBs.
Long electrical and mechanical life.
Stable operation with low coil power consumption.
Easy to integrate into various control systems.

Versatility in Applications

Signal and communication devices
Automotive electronics
Consumer electronics control boards
Industrial control units
Test and measurement equipment

Datasheet(Technical Reference)
