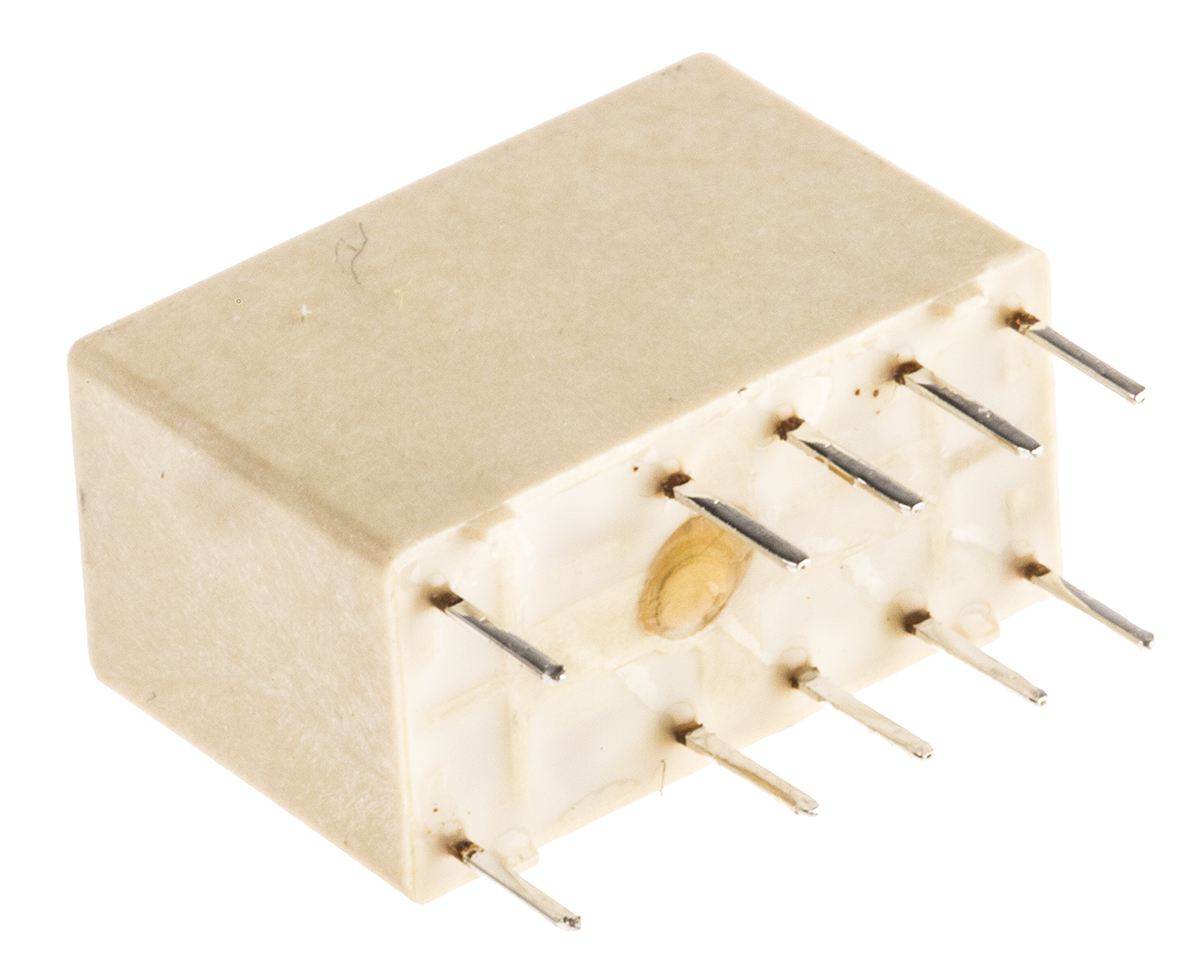

This is DPDT PCB Mount Latching Relay 2 A 24V dc manufactured by TE Connectivity. The manufacturer part number is V23079B1205B301. The given dimensions of the product include 14.5 x 9.8 x 7.2mm. The coil voltage of the product is 24v dc. The terminal is a through hole type. It holds up to 4114ω coil resistance. It is capable of doing 100000000 (mechanical) cycles in a lifetime . Robust coil power of 140mw. While it carries 220v dc of maximum DC switching voltage. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 2a switching current. It has a maximum 2 a switching current AC . The product has -40 → +85°c of operating temperature range. Latching Options - yes. The contact is equipped with dpdt configuration. The product comes in 7.2mm depth. The product is available in pcb mount configuration. The product axicom, is a highly preferred choice for users. Its accurate length is 14.5mm. In addition, the height is 9.8mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 2 poles. The product is made from sturdy gold plated materials.
For more information please check the datasheets.
