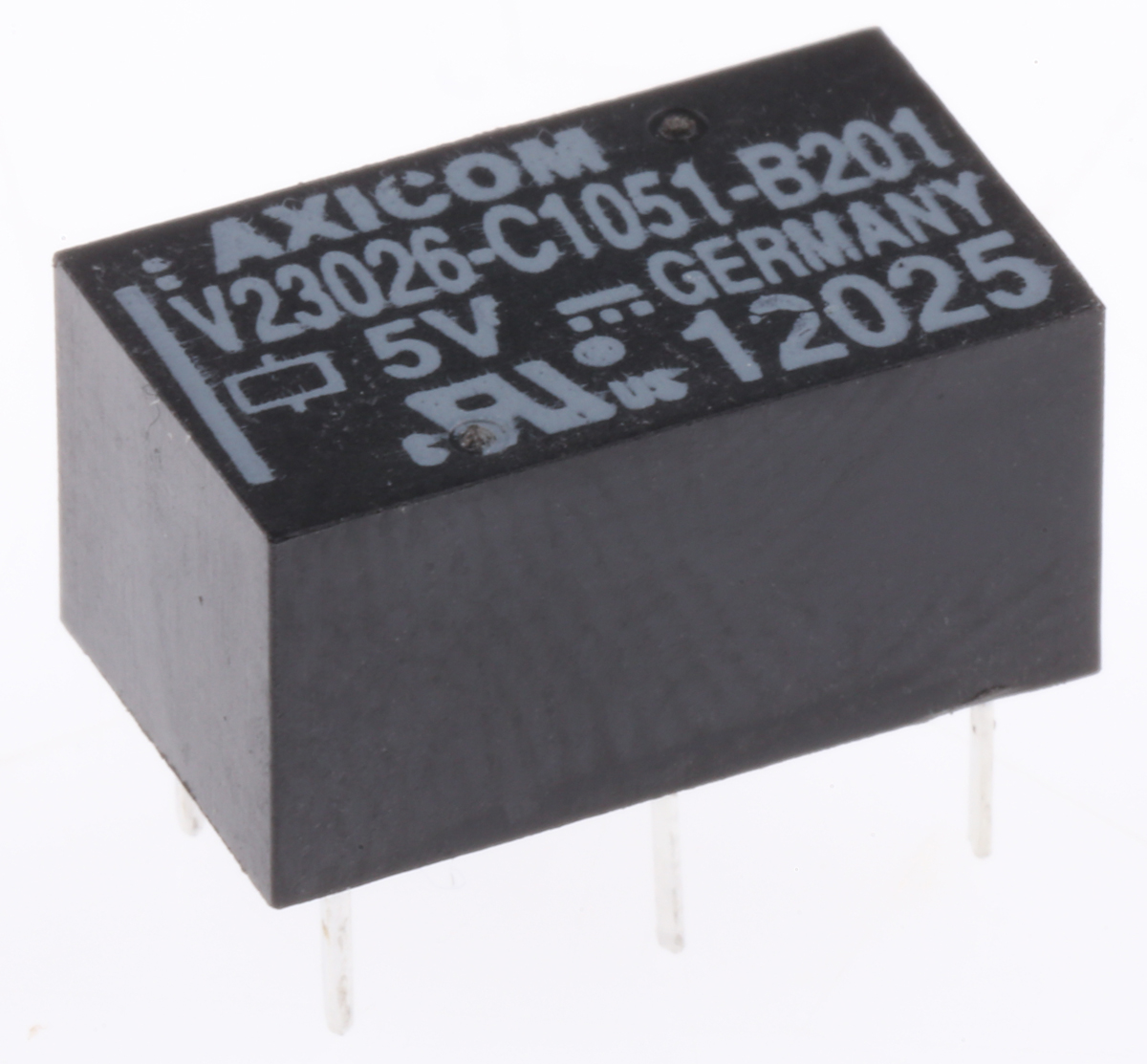

SPDT PCB Mount Latching Relay 1 A, 5V dc

V23026C1051B201 SPDT PCB Mount Latching Relay 1 A, 5V dc
V23026C1051B201
TE Connectivity

Product Information

Dimensions:
13 x 6.9 x 7.6mm
Coil Voltage:
5V dc
Terminal Type:
Through Hole
Coil Resistance:
740Ω
Life:
1000000000 (Mechanical) cycles
Coil Power:
34mW
Maximum Switching Voltage DC:
125V dc
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
1A
Maximum Switching Current AC:
1 A
Operating Temperature Range:
-40 → +85°C
Latching:
Yes
Contact Configuration:
SPDT
Depth:
7.6mm
Mounting Type:
PCB Mount
Length:
13mm
Height:
6.9mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
150V ac
Minimum Operating Temperature:
-40°C
Number of Poles:
1
Contact Material:
Gold Plated, Rhodium Plated Palladium Nickel
RoHs Compliant
Checking for live stock

This is SPDT PCB Mount Latching Relay 1 A 5V dc manufactured by TE Connectivity. The manufacturer part number is V23026C1051B201. The given dimensions of the product include 13 x 6.9 x 7.6mm. The coil voltage of the product is 5v dc. The terminal is a through hole type. It holds up to 740ω coil resistance. It is capable of doing 1000000000 (mechanical) cycles in a lifetime . Robust coil power of 34mw. While it carries 125v dc of maximum DC switching voltage. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 1a switching current. It has a maximum 1 a switching current AC . The product has -40 → +85°c of operating temperature range. Latching Options - yes. The contact is equipped with spdt configuration. The product comes in 7.6mm depth. The product is available in pcb mount configuration. Its accurate length is 13mm. In addition, the height is 6.9mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 150v ac. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 1 poles. The product is made from sturdy gold plated, rhodium plated palladium nickel materials.
