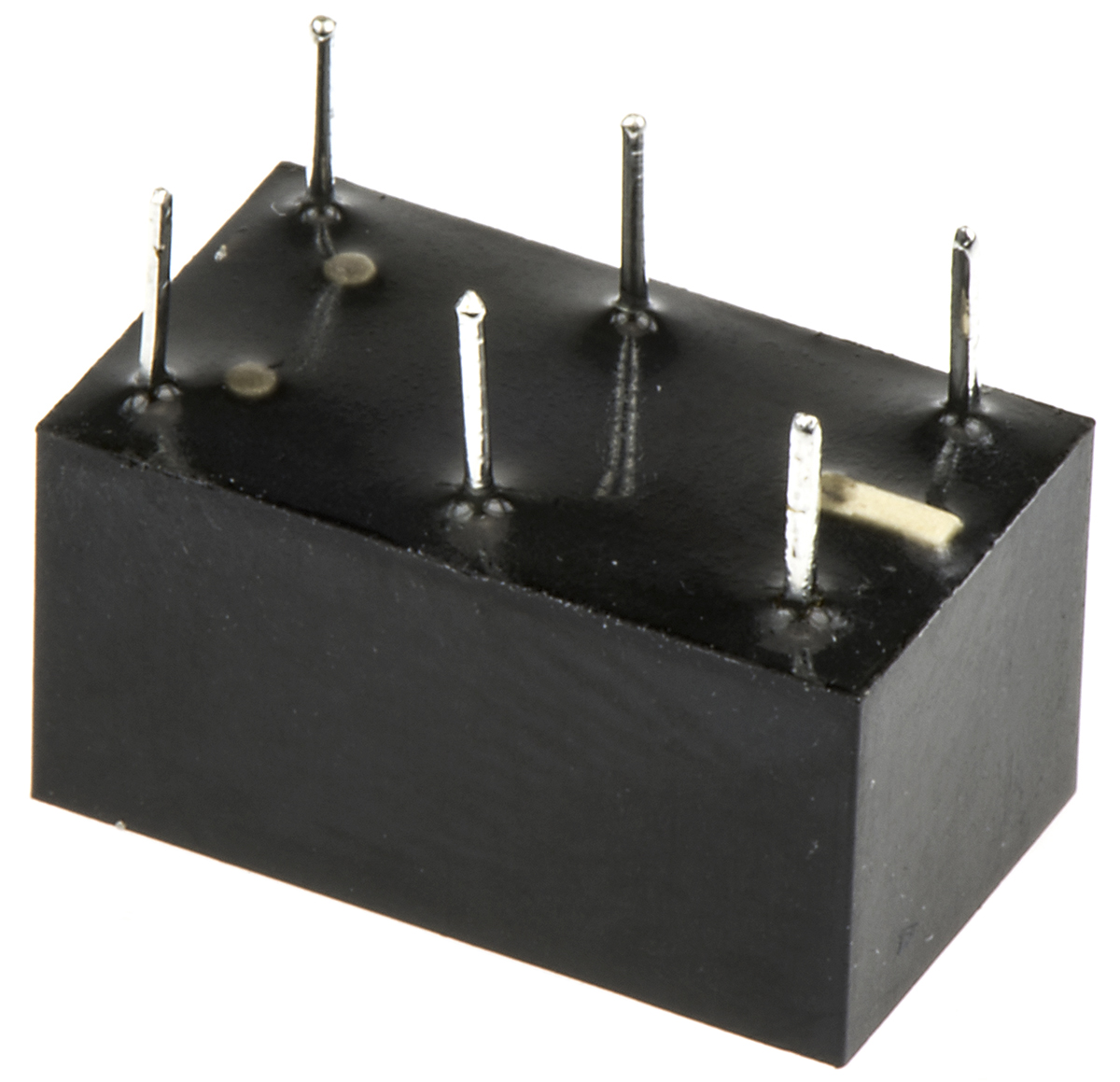

TE Connectivity SPDT Non-Latching Relay PCB Mount, 5V dc Coil

V23026A1001B201 TE Connectivity SPDT Non-Latching Relay PCB Mount, 5V dc Coil
V23026A1001B201
V23026A1001B201
TE Connectivity

Product Information

Dimensions:
13 x 6.9 x 7.6mm
Coil Voltage:
5V dc
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
378Ω
Coil Power:
68mW
Maximum Switching Voltage DC:
125V dc
Maximum Switching Power DC:
30 W
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
1A
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
DPDT
Length:
13mm
Features:
Immersion Cleanable, Directly Trigger able With TTL Standard Modules
Mounting Type:
PCB Mount
Series:
Axicom P1
Depth:
7.5mm
Height:
6.9mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
150V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
37.5VA
Number of Poles:
1
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is SPDT Non-Latching Relay PCB Mount 5V dc Coil manufactured by TE Connectivity. The manufacturer part number is V23026A1001B201. The given dimensions of the product include 13 x 6.9 x 7.6mm. The coil voltage of the product is 5v dc. Applications Information involves signal. The terminal is a through hole type. It holds up to 378ω coil resistance. Robust coil power of 68mw. While it carries 125v dc of maximum DC switching voltage. It bears a maximum 30 w of DC switching power. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 1a switching current. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with dpdt configuration. Its accurate length is 13mm. The splendid features of the product include immersion cleanable, directly trigger able with ttl standard modules. The product is available in pcb mount configuration. The product axicom p1, is a highly preferred choice for users. The product comes in 7.5mm depth. In addition, the height is 6.9mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 150v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 37.5va. It has equipped with 1 poles. The product is made from sturdy gold plated materials.
