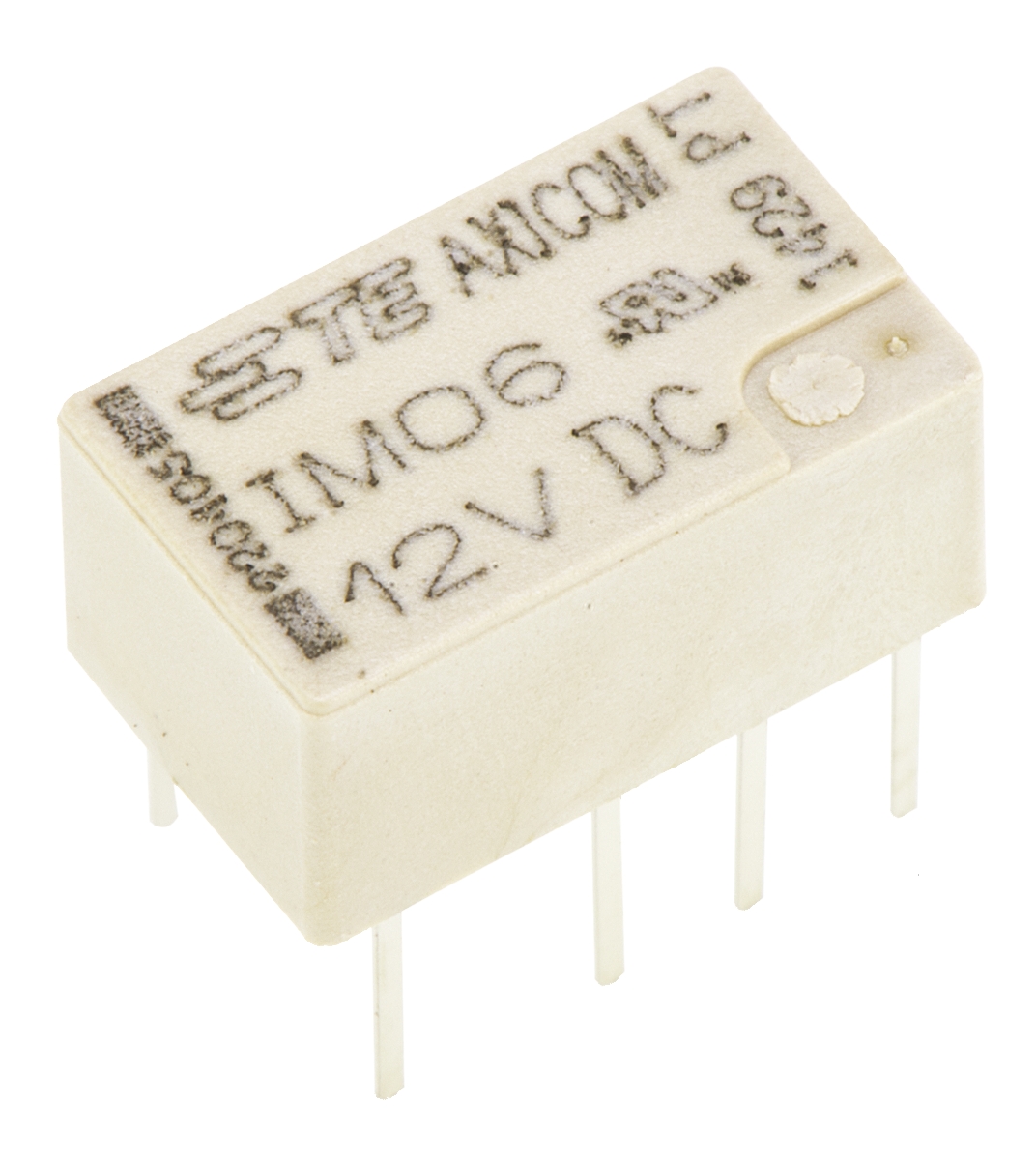

TE Connectivity DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 2 A

IM06TS TE Connectivity DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 2 A
IM06TS
IM06TS
TE Connectivity

Product Information

Dimensions:
10 x 6 x 5.65mm
Coil Voltage:
12V dc
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
1000Ω
Coil Power:
140mW
Maximum Switching Voltage DC:
220V dc
Maximum Switching Power DC:
60 W
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
DPDT
Length:
10mm
Features:
Bifurcated Contacts, Low Coil Power Consumption
Mounting Type:
PCB Mount
Series:
IM
Depth:
6mm
Height:
5.65mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
2
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is DPDT Non-Latching Relay PCB Mount 12V dc Coil 2 A manufactured by TE Connectivity. The manufacturer part number is IM06TS. The given dimensions of the product include 10 x 6 x 5.65mm. The coil voltage of the product is 12v dc. Applications Information involves signal. The terminal is a through hole type. It holds up to 1000ω coil resistance. Robust coil power of 140mw. While it carries 220v dc of maximum DC switching voltage. It bears a maximum 60 w of DC switching power. It has a maximum operating temperature of +85°c. It is integrated with 2a switching current. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with dpdt configuration. Its accurate length is 10mm. The splendid features of the product include bifurcated contacts, low coil power consumption. The product is available in pcb mount configuration. The product im, is a highly preferred choice for users. The product comes in 6mm depth. In addition, the height is 5.65mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 62.5va. It has equipped with 2 poles. The product is made from sturdy gold plated materials.
