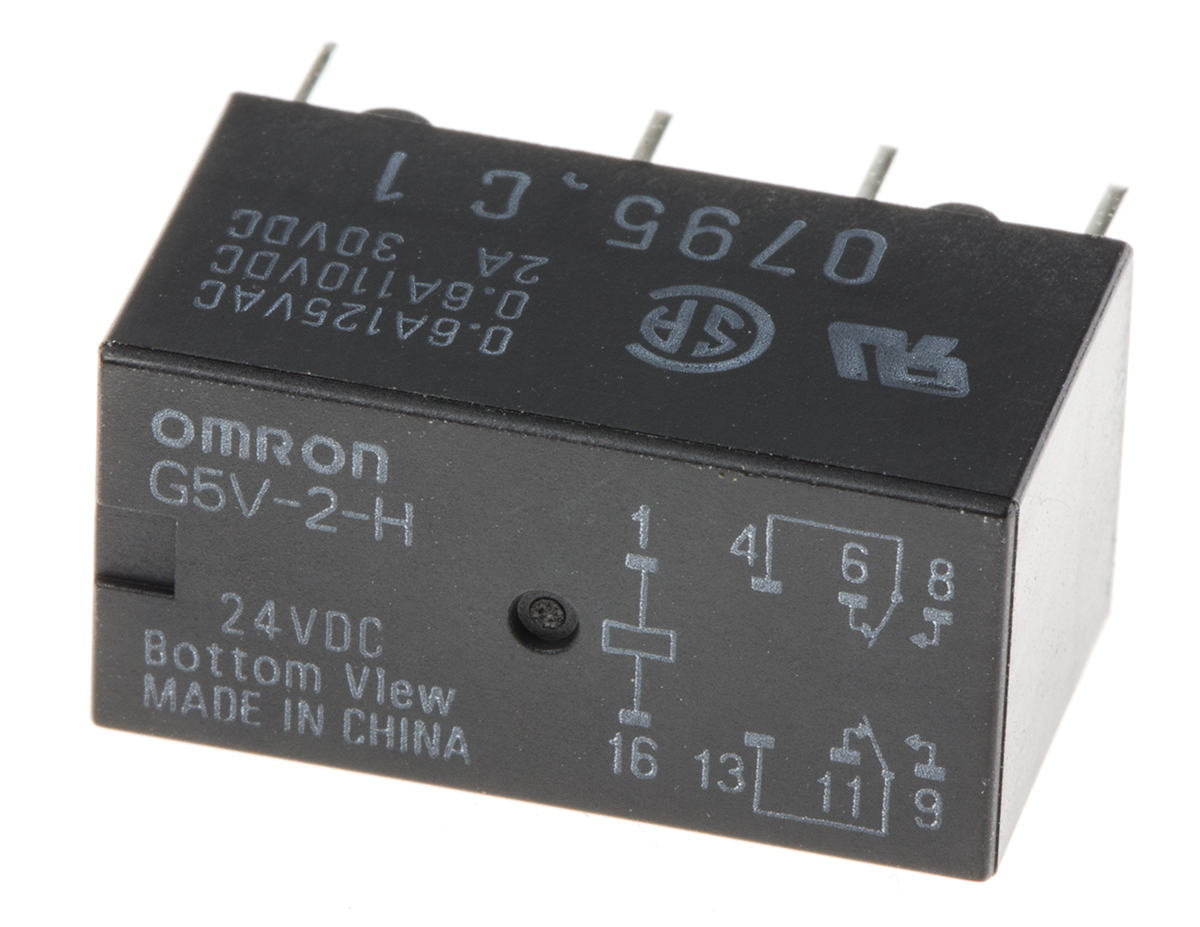

Omron DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A

G5V-2-H-24DC Omron DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A
G5V-2-H 24DC
Omron

Product Information

Dimensions:
20.5 x 10 x 11.5mm
Electrical Life:
10^5 Operations
Application:
Telecommunications
Terminal Type:
Through Hole
Coil Resistance:
2880Ω
Life:
100000 Operations
Coil Power:
200mW
Maximum Switching Voltage DC:
125V
Maximum Switching Power DC:
24 W
Maximum Operating Temperature:
+70°C
Switching Current:
1A
Coil Voltage:
24V dc
Operating Temperature Range:
-25 → +70°C
Latching:
No
Contact Configuration:
DPDT
Depth:
10mm
Features:
Conforms to FCC Part 68 Requirements, Bifurcated Contacts
Mounting Type:
PCB Mount
Series:
TSC
Length:
20.5mm
Height:
9.9mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
125V
Minimum Operating Temperature:
-25°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
2
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is DPDT Non-Latching Relay PCB Mount 24V dc Coil 2 A manufactured by Omron. The manufacturer part number is G5V-2-H 24DC. The given dimensions of the product include 20.5 x 10 x 11.5mm. The product offers long-lasting services of 10^5 operations. Applications Information involves telecommunications. The terminal is a through hole type. It holds up to 2880ω coil resistance. It is capable of doing 100000 operations in a lifetime . Robust coil power of 200mw. While it carries 125v of maximum DC switching voltage. It bears a maximum 24 w of DC switching power. It has a maximum operating temperature of +70°c. It is integrated with 1a switching current. The coil voltage of the product is 24v dc. The product has -25 → +70°c of operating temperature range. Latching Options - no. The contact is equipped with dpdt configuration. The product comes in 10mm depth. The splendid features of the product include conforms to fcc part 68 requirements, bifurcated contacts. The product is available in pcb mount configuration. The product tsc, is a highly preferred choice for users. Its accurate length is 20.5mm. In addition, the height is 9.9mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 125v. Whereas, the minimum operating temperature of the product is -25°c. It also features an AC switching power of 62.5va. It has equipped with 2 poles. The product is made from sturdy gold plated materials.

pdf icon
G5V-2 Low Signal Relay(Technical Reference)
