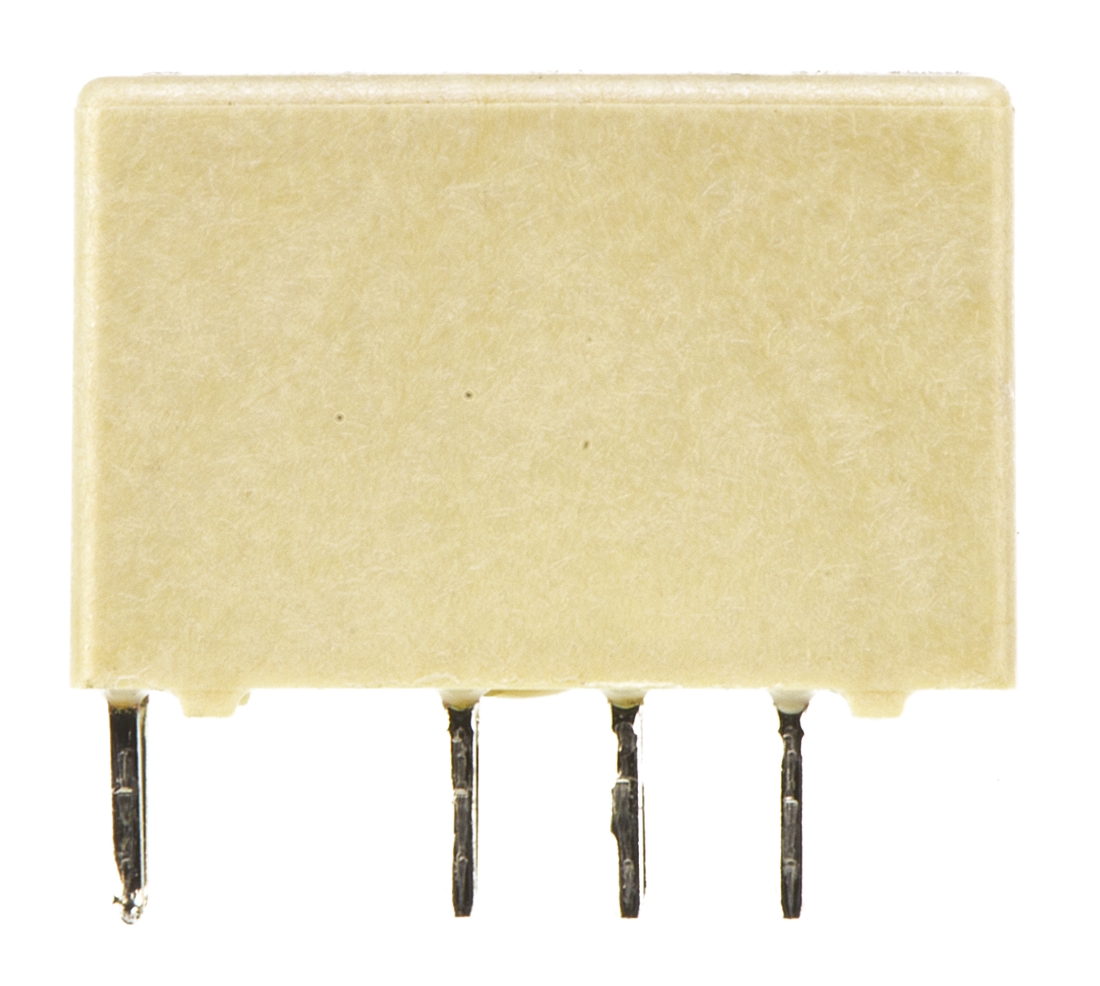

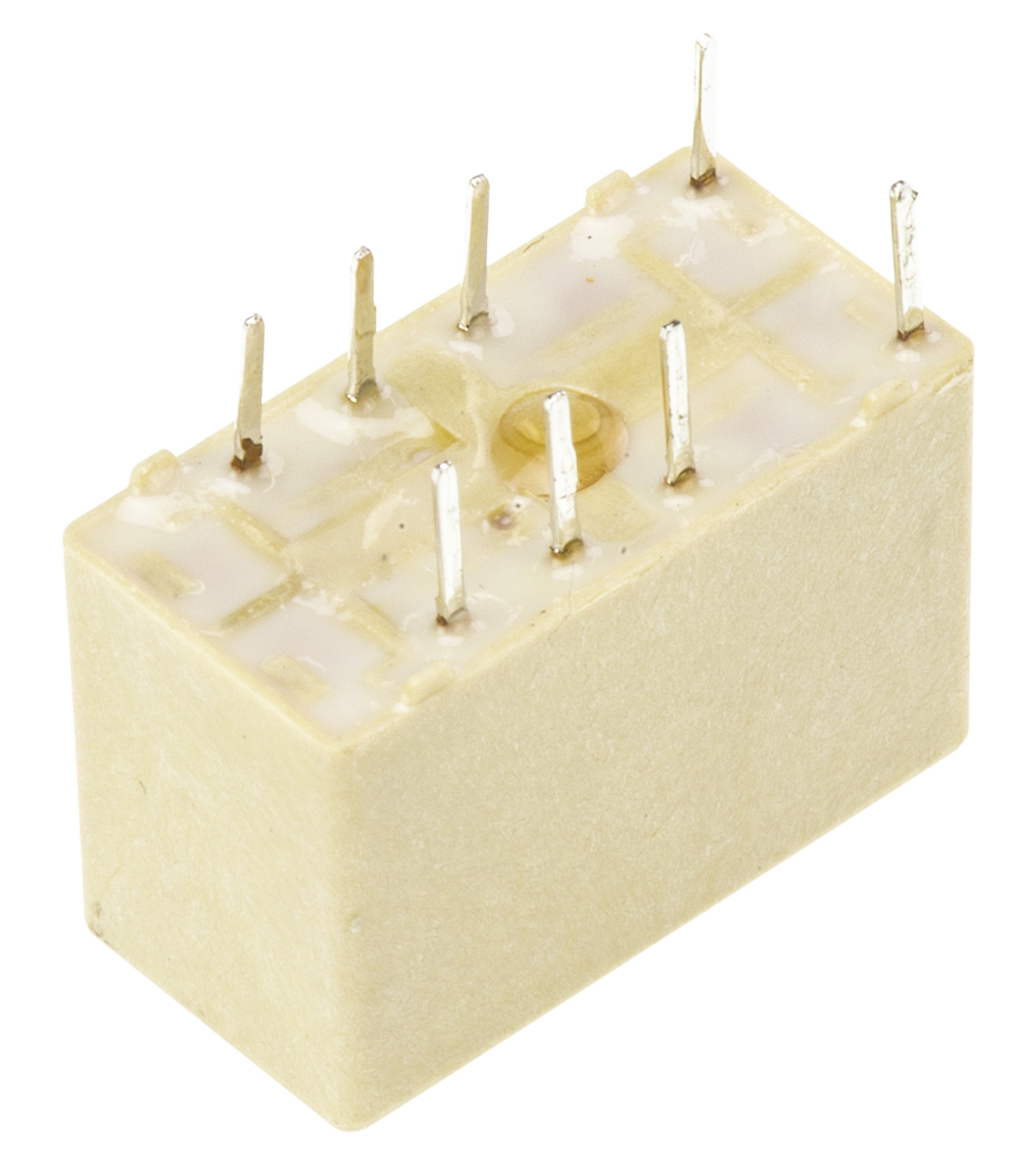

DPDT PCB Mount Latching Relay 2 A, 12V dc

V23079C1103B301 DPDT PCB Mount Latching Relay 2 A, 12V dc
V23079C1103B301
V23079C1103B301
TE Connectivity

Product Information

Dimensions:
14.5 x 9.8 x 7.2mm
Coil Voltage:
12V dc
Terminal Type:
Through Hole
Coil Resistance:
1029Ω
Life:
100000000 (Mechanical) cycles
Coil Power:
140mW
Maximum Switching Voltage DC:
220V dc
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Maximum Switching Current AC:
2 A
Operating Temperature Range:
-40 → +85°C
Latching:
Yes
Contact Configuration:
DPDT
Depth:
7.2mm
Mounting Type:
PCB Mount
Series:
Axicom
Length:
14.5mm
Height:
9.8mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Number of Poles:
2
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is DPDT PCB Mount Latching Relay 2 A 12V dc manufactured by TE Connectivity. The manufacturer part number is V23079C1103B301. The given dimensions of the product include 14.5 x 9.8 x 7.2mm. The coil voltage of the product is 12v dc. The terminal is a through hole type. It holds up to 1029ω coil resistance. It is capable of doing 100000000 (mechanical) cycles in a lifetime . Robust coil power of 140mw. While it carries 220v dc of maximum DC switching voltage. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 2a switching current. It has a maximum 2 a switching current AC . The product has -40 → +85°c of operating temperature range. Latching Options - yes. The contact is equipped with dpdt configuration. The product comes in 7.2mm depth. The product is available in pcb mount configuration. The product axicom, is a highly preferred choice for users. Its accurate length is 14.5mm. In addition, the height is 9.8mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 2 poles. The product is made from sturdy gold plated materials.

pdf icon
Datasheet(Technical Reference)
