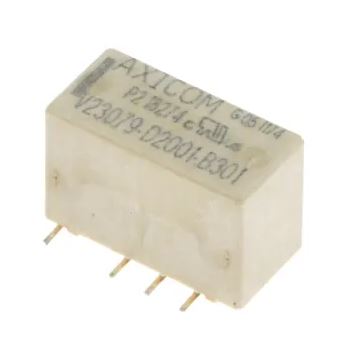

TE Connectivity V23079-D2001-B301, DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 2 A

TE Connectivity

Product Information

Dimensions:
14.5 x 10.4 x 7.2mm
Coil Voltage:
5V dc
Application:
Signal
Terminal Type:
Surface Mount
Coil Resistance:
178Ω
Coil Power:
140mW
Maximum Switching Voltage DC:
220V dc
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
DPDT
Length:
14.5mm
Features:
Bifurcated Contacts, Immersion cleanable
Mounting Type:
Surface Mount
Series:
Axicom P2
Depth:
7.4mm
Height:
10.4mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
2
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

The TE Connectivity V23079-D2001-B301 is a compact DPDT non-latching relay designed for reliable signal switching in PCB-mounted applications. Featuring a 5V DC coil and a 2A contact rating, this high-performance relay is ideal for low-power control systems requiring dependable switching capabilities. It offers long-term reliability, easy integration, and optimal performance in compact circuit designs.

Why Choose the TE Connectivity V23079-D2001-B301, DPDT Non-Latching Relay PCB Mount?

 This relay enables accurate, isolated switching in low-voltage circuits, ideal for automation, control systems, and consumer electronics. When 5V DC is applied to the coil, the internal contacts switch between two output positions. Being non-latching, it returns to its default state when the power is removed.

Unique Features Include

  • DPDT (Double Pole Double Throw) contact configuration.
  • 5V DC coil voltage.
  • 2A switching capacity.
  • PCB mountable design.
  • High electrical reliability.

Notable Advantages of Buying the V23079-D2001-B301, DPDT Non-Latching Relay PCB Mount

  • Ideal for compact control applications.
  • Fast, reliable switching performance.
  • Easy to mount on PCBs.
  • Suitable for signal routing and circuit isolation.

Wide Application Range

  • Industrial automation systems
  • Consumer electronics
  • Signal switching circuits
  • Control panels
  • Telecommunications equipment
