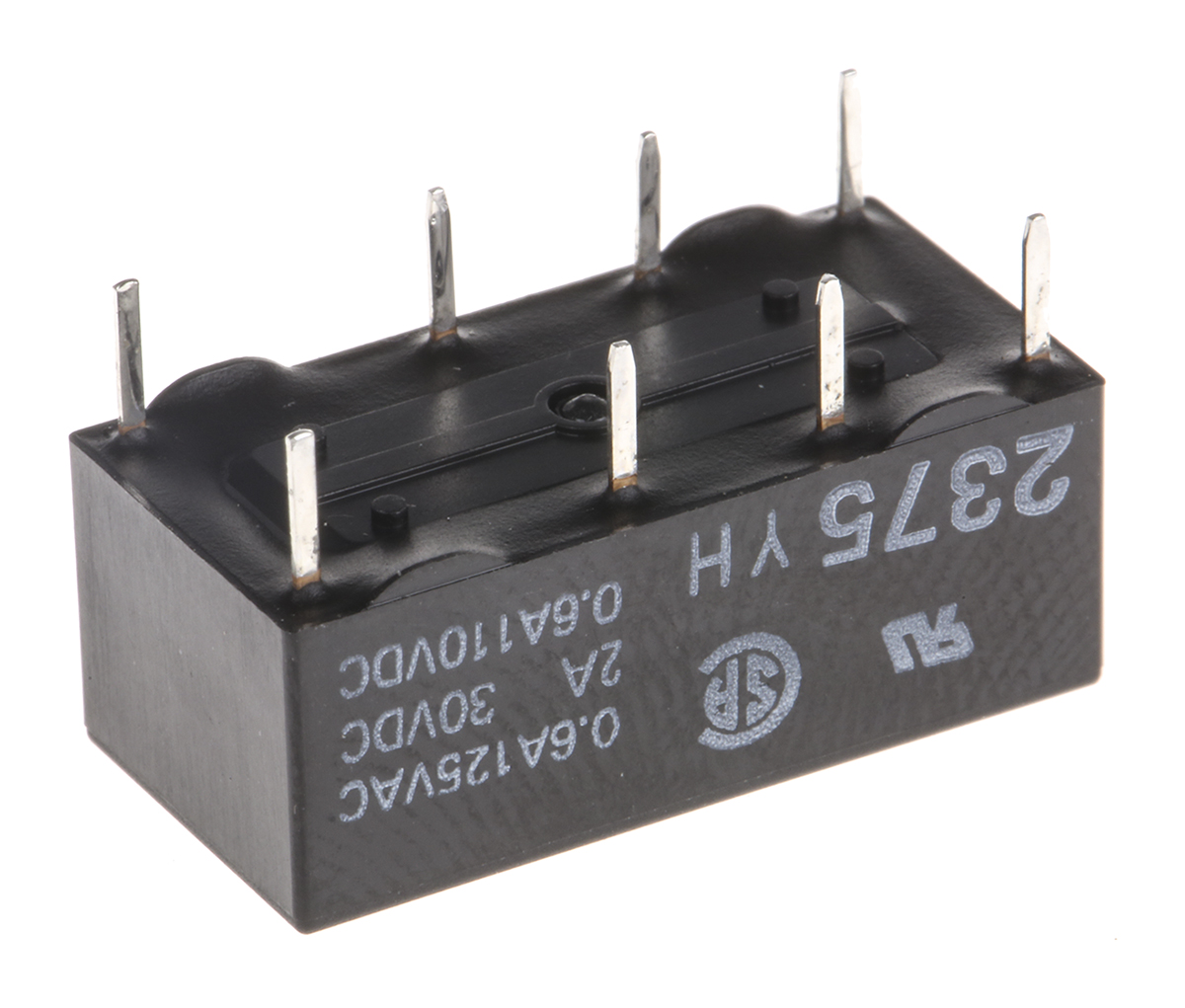

Omron DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A

G6A274PSTUS24DC Omron DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A
G6A274PSTUS24DC
Omron

Product Information

Dimensions:
20.2 x 8 x 10.1mm
Coil Voltage:
24V dc
Application:
Signal
Terminal Type:
PCB Pin
Coil Resistance:
2880Ω
Life:
500000 Operations
Coil Power:
200mW
Maximum Switching Voltage DC:
220V
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+70°C
Switching Current:
2A
Maximum Switching Current AC:
2 A
Operating Temperature Range:
-40 → +70°C
Latching:
No
Contact Configuration:
DPDT
Depth:
10.1mm
Features:
Resistant To Electromagnetic Interference, Conforms to FCC Part Requirements, Bifurcated Contacts
Mounting Type:
PCB Mount
Series:
G6A
Length:
20.2mm
Height:
8mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
2
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is DPDT Non-Latching Relay PCB Mount 24V dc Coil 2 A manufactured by Omron. The manufacturer part number is G6A274PSTUS24DC. The given dimensions of the product include 20.2 x 8 x 10.1mm. The coil voltage of the product is 24v dc. Applications Information involves signal. The terminal is a pcb pin type. It holds up to 2880ω coil resistance. It is capable of doing 500000 operations in a lifetime . Robust coil power of 200mw. While it carries 220v of maximum DC switching voltage. It bears a maximum 60 w of DC switching power. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +70°c. It is integrated with 2a switching current. It has a maximum 2 a switching current AC . The product has -40 → +70°c of operating temperature range. Latching Options - no. The contact is equipped with dpdt configuration. The product comes in 10.1mm depth. The splendid features of the product include resistant to electromagnetic interference, conforms to fcc part requirements, bifurcated contacts. The product is available in pcb mount configuration. The product g6a, is a highly preferred choice for users. Its accurate length is 20.2mm. In addition, the height is 8mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 250v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 62.5va. It has equipped with 2 poles. The product is made from sturdy gold plated materials.

pdf icon
Low Signal Relay G6A Data Sheet(Technical Reference)
