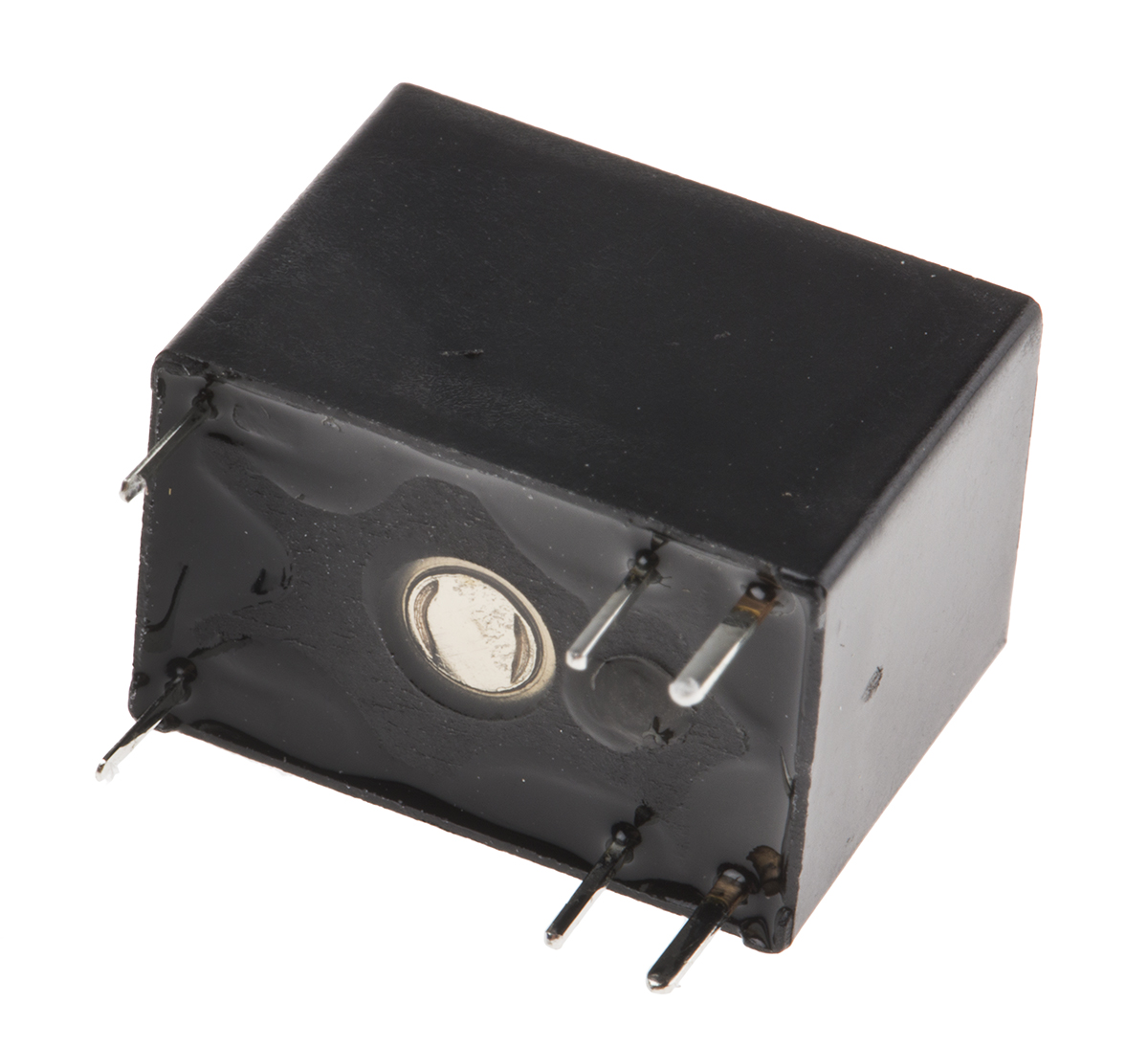

This is SPDT Non-Latching Relay PCB Mount 24V dc Coil 1.25 A manufactured by TE Connectivity. The manufacturer part number is V23101D 107A301. The given dimensions of the product include 15.4 x 11.5 x 10mm. The coil voltage of the product is 24v dc. The terminal is a surface mount type. It holds up to 2800ω coil resistance. Robust coil power of 200mw. While it carries 120v dc of maximum DC switching voltage. It bears a maximum 60 w of DC switching power. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 3a switching current. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with spst configuration. Its accurate length is 15.4mm. The splendid features of the product include multi purpose relay, immersion cleanable. The product is available in pcb mount configuration. The product axicom p1, is a highly preferred choice for users. The product comes in 10mm depth. In addition, the height is 11.5mm. It has a minimum 3 a DC switching current . It has a maximum AC switching voltage of 125v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 62.5va. It has equipped with 1 poles. The product is made from sturdy gold plated, rhodium plated palladium nickel materials.
For more information please check the datasheets.
