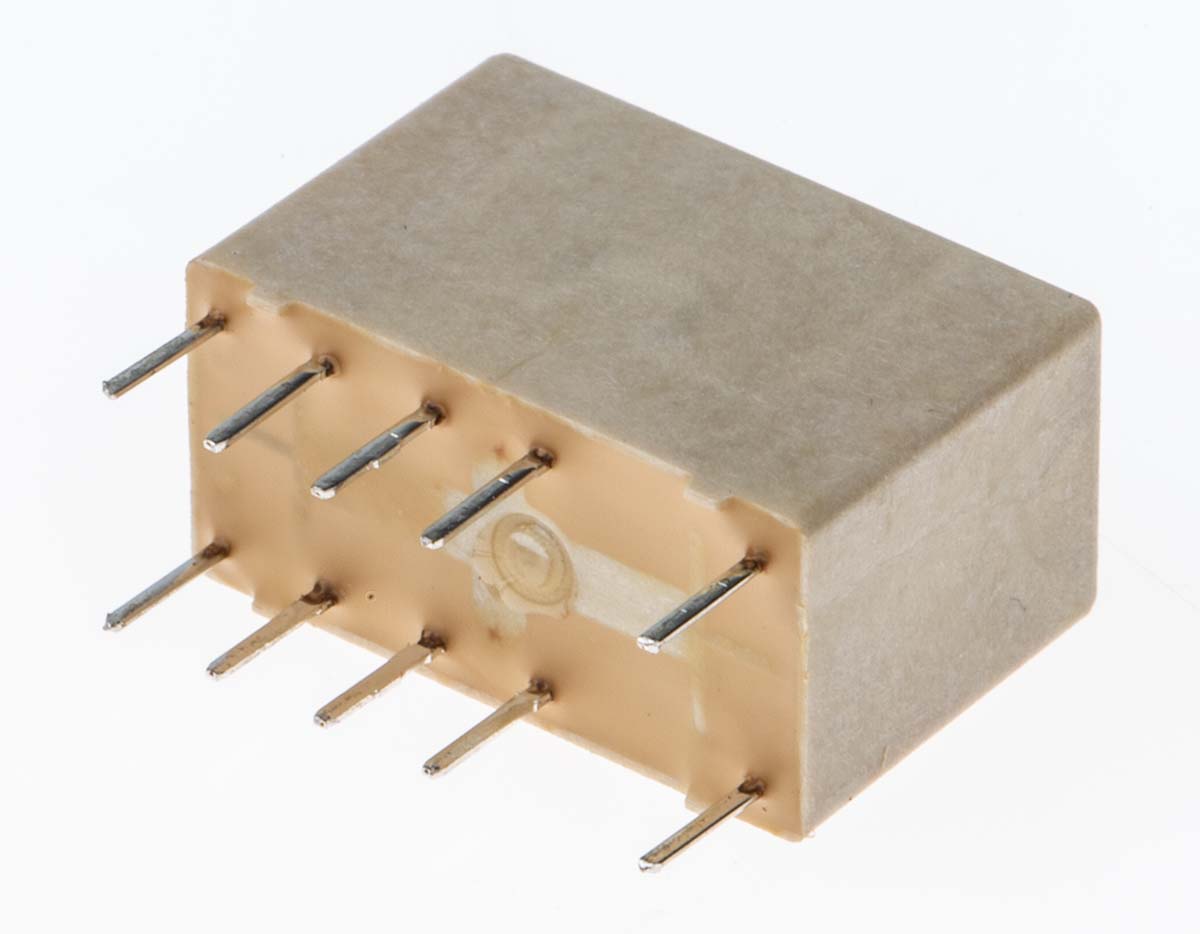

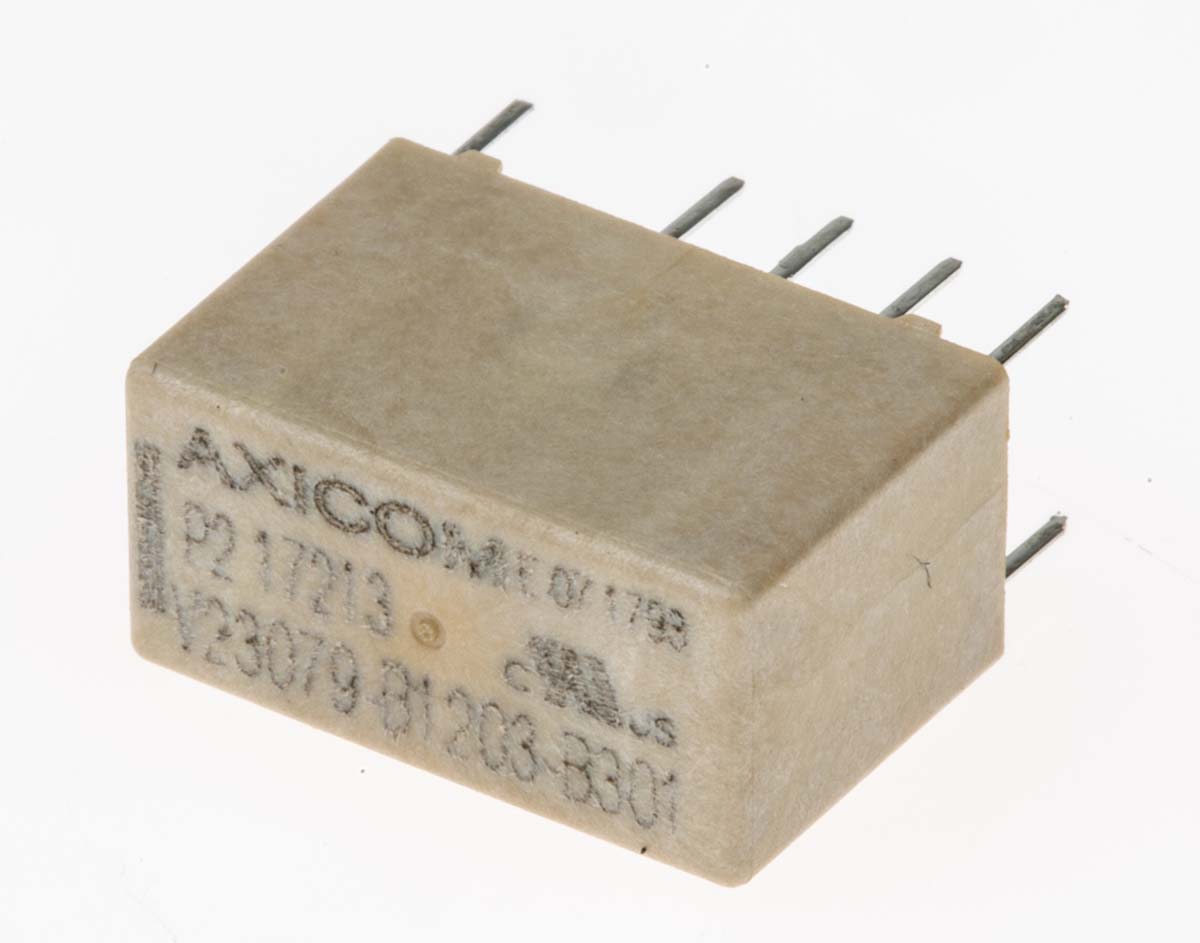

DPDT PCB Mount Latching Relay 5 A, 12V dc For Use In Signal Applications
Product Information
Dimensions:
14.5 x 9.8 x 7.2mm
Coil Voltage:
12V dc
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
1029Ω
Coil Power:
140mW
Maximum Switching Voltage DC:
220V dc
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Maximum Switching Current AC:
5 A
Operating Temperature Range:
-40 → +85°C
Latching:
Yes
Contact Configuration:
DPDT
Length:
14.5mm
Mounting Type:
PCB Mount
Depth:
7.2mm
Height:
9.8mm
Maximum Switching Current DC:
5 A
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Contact Material:
Gold Plated
Checking for live stock
FAQs
Yes. You can also search V23079-B1203-B301 on website for other similar products.
We accept all major payment methods for all products including ET13887938. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with V23079-B1203-B301 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Signal Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of DPDT PCB Mount Latching Relay 5 A, 12V dc For Use In Signal Applications. You can also check on our website or by contacting our customer support team for further order details on DPDT PCB Mount Latching Relay 5 A, 12V dc For Use In Signal Applications.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13887938 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13887938.
Yes. We ship V23079-B1203-B301 Internationally to many countries around the world.
This is DPDT PCB Mount Latching Relay 5 A 12V dc For Use In Signal Applications manufactured by TE Connectivity. The manufacturer part number is V23079-B1203-B301. The given dimensions of the product include 14.5 x 9.8 x 7.2mm. The coil voltage of the product is 12v dc. Applications Information involves signal. The terminal is a through hole type. It holds up to 1029ω coil resistance. Robust coil power of 140mw. While it carries 220v dc of maximum DC switching voltage. It bears a maximum 60 w of DC switching power. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 2a switching current. It has a maximum 5 a switching current AC . The product has -40 → +85°c of operating temperature range. Latching Options - yes. The contact is equipped with dpdt configuration. Its accurate length is 14.5mm. The product is available in pcb mount configuration. The product comes in 7.2mm depth. In addition, the height is 9.8mm. It has a minimum 5 a DC switching current . It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 62.5va. The product is made from sturdy gold plated materials.
