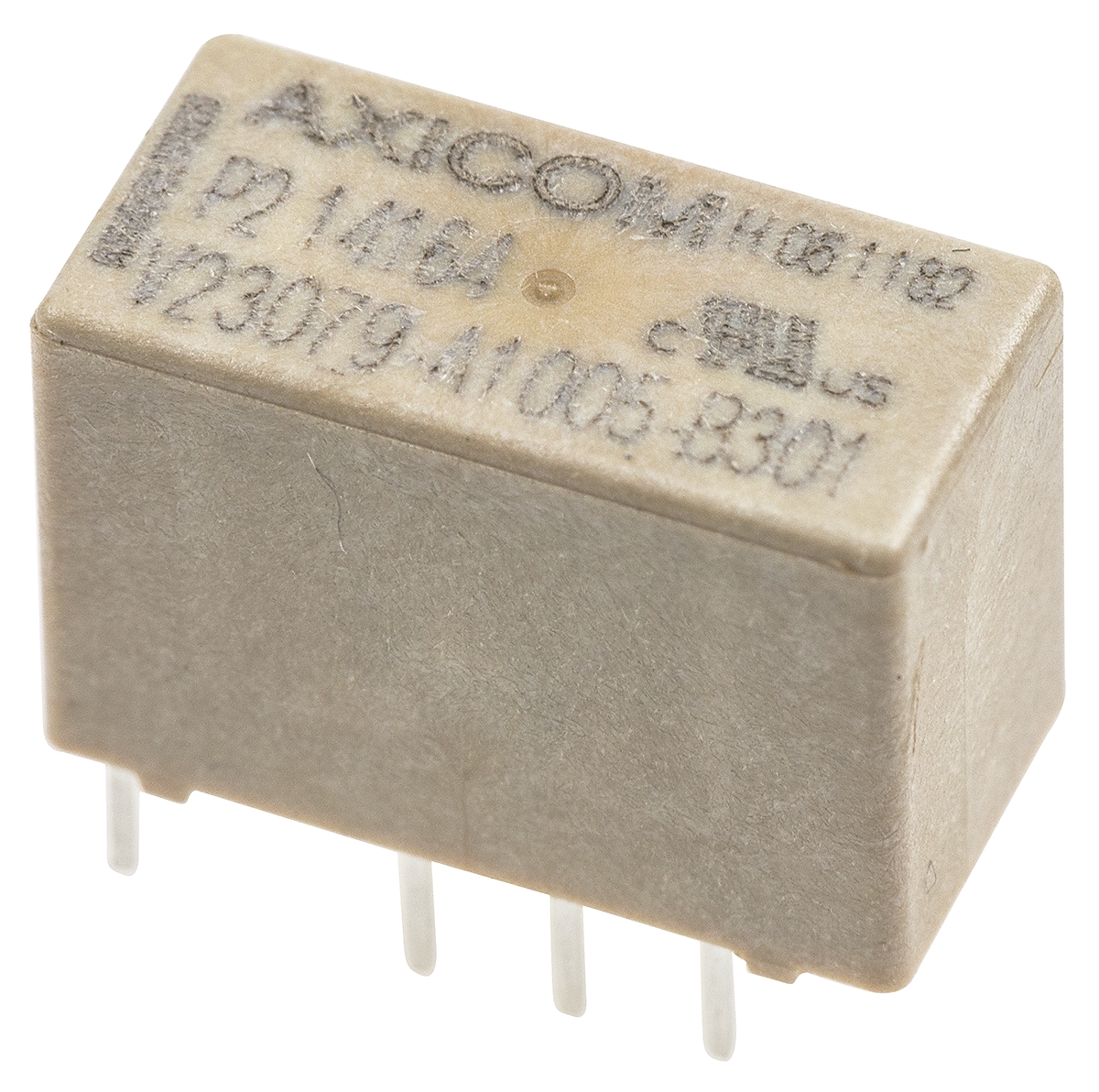

TE Connectivity DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 5 A

V23079A1005B301 TE Connectivity DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 5 A
V23079A1005B301
TE Connectivity

Product Information

Dimensions:
14.5 x 9.8 x 7.2mm
Coil Voltage:
24V dc
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
4100Ω
Coil Power:
140mW
Maximum Switching Voltage DC:
220V dc
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
2kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
DPDT
Length:
14.5mm
Features:
Bifurcated Contacts, Immersion cleanable
Mounting Type:
PCB Mount
Series:
Axicom P2
Depth:
7.2mm
Height:
9.8mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
2
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is DPDT Non-Latching Relay PCB Mount 24V dc Coil 5 A manufactured by TE Connectivity. The manufacturer part number is V23079A1005B301. The given dimensions of the product include 14.5 x 9.8 x 7.2mm. The coil voltage of the product is 24v dc. Applications Information involves signal. The terminal is a through hole type. It holds up to 4100ω coil resistance. Robust coil power of 140mw. While it carries 220v dc of maximum DC switching voltage. It bears a maximum 60 w of DC switching power. The product has 2kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 2a switching current. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with dpdt configuration. Its accurate length is 14.5mm. The splendid features of the product include bifurcated contacts, immersion cleanable. The product is available in pcb mount configuration. The product axicom p2, is a highly preferred choice for users. The product comes in 7.2mm depth. In addition, the height is 9.8mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 250v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 62.5va. It has equipped with 2 poles. The product is made from sturdy gold plated materials.
