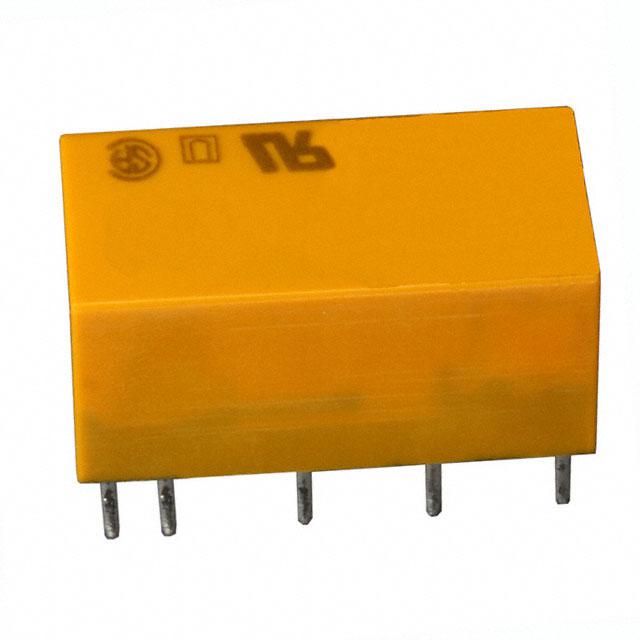

Panasonic Electric Works DS2E-SL2-DC12V

DS2E-SL2-DC12V Panasonic Electric Works
Panasonic Electric Works

Product Information

HTSUS:
8536.41.0020
RoHS Status:
RoHS Compliant
Coil Voltage:
12VDC
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
800 Ohms
Coil Current:
15 mA
Coil Type:
Latching, Dual Coil
Switching Voltage:
250VAC, 220VDC - Max
Seal Rating:
Sealed - Fully
edacadModel:
DS2E-SL2-DC12V Models
edacadModelUrl:
/en/models/251839
Must Operate Voltage:
8.4 VDC
Relay Type:
General Purpose
Package:
Tube
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
10 ms
Must Release Voltage:
-
Contact Rating (Current):
2 A
Features:
-
Mounting Type:
Through Hole
Series:
DS
Release Time:
5 ms
Coil Insulation:
-
Contact Material:
Silver (Ag), Gold (Au)
Base Product Number:
DS2E
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electric Works. The manufacturer part number is DS2E-SL2-DC12V. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs compliant. The coil voltage of the product is 12vdc. Moreover, it has pc pin terminal style. The product has -40°c ~ 70°c operating temperature range. It holds up to 800 ohms coil resistance. It has a coil current of 15 ma. The coil is a latching, dual coil type. The product's switching voltage is 250vac, 220vdc - max. Seal rating options: sealed - fully. On the other hand, 8.4 vdc is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in tube package . It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 10 ms. It has a contact current rating of 2 a. The product is available in through hole configuration. The product ds, is a highly preferred choice for users. While 5 ms is its release time. The product is made from sturdy silver (ag), gold (au) materials. Moreover, it corresponds to ds2e, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
DS2 - End of Life 15/MAR/2021(PCN Obsolescence/ EOL)
pdf icon
DSxE-xx-x Series Datasheet(Datasheets)
pdf icon
DS2 - NRND 09/OCT/2020(PCN Part Status Change)
pdf icon
Mult Dev Label Chgs 20/Sep/2019(PCN Packaging)
pdf icon
Standards Chart(Other Related Documents)
pdf icon
How to Read Date Codes(Other Related Documents)
