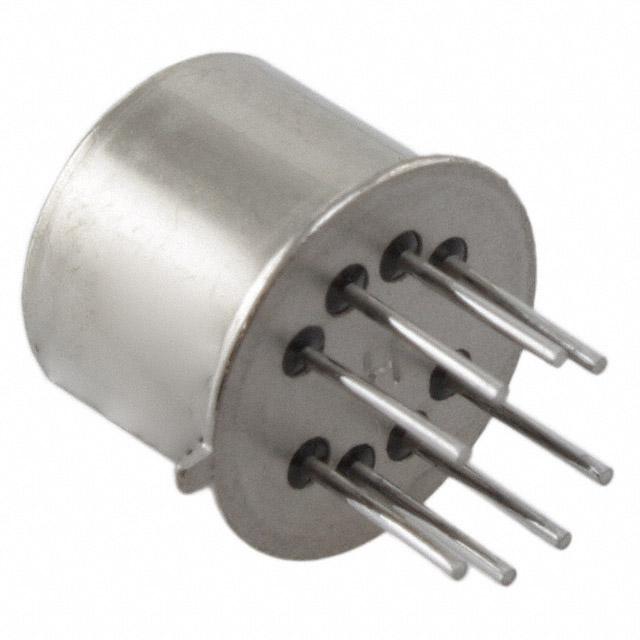

TE Connectivity Aerospace, Defense and Marine JMAP-26XL

JMAP-26XL TE Connectivity Aerospace, Defense and Marine
TE Connectivity Aerospace, Defense and Marine

Product Information

Must Release Voltage:
1.37 VDC
HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
26.5VDC
Termination Style:
PC Pin
REACH Status:
REACH Unaffected
Operating Temperature:
-65°C ~ 125°C
Coil Resistance:
1560 Ohms
Coil Type:
Non Latching
Switching Voltage:
115VAC, 28VDC - Max
Seal Rating:
Sealed - Hermetically
Must Operate Voltage:
14.2 VDC
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
2 ms
Qualification:
MIL-R-39016/9
Contact Rating (Current):
1 A
Features:
-
Mounting Type:
Through Hole
Grade:
Military
Series:
MA, CII
Release Time:
1.5 ms
Coil Insulation:
-
Contact Material:
Silver Palladium (AgPd), Gold (Au)
Base Product Number:
JMAP
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Aerospace, Defense and Marine. The manufacturer part number is JMAP-26XL. While the must release voltage is a 1.37 vdc. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs3 compliant. The coil voltage of the product is 26.5vdc. Moreover, it has pc pin terminal style. In addition, it is reach unaffected. The product has -65°c ~ 125°c operating temperature range. It holds up to 1560 ohms coil resistance. The coil is a non latching type. The product's switching voltage is 115vac, 28vdc - max. Seal rating options: sealed - hermetically. On the other hand, 14.2 vdc is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in bulk package . It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 2 ms. It has a contact current rating of 1 a. The product is available in through hole configuration. The product is military, a grade of class. The product ma, cii, is a highly preferred choice for users. While 1.5 ms is its release time. The product is made from sturdy silver palladium (agpd), gold (au) materials. Moreover, it corresponds to jmap, a base product number of the product. The product is designated with the ear99 code number.
