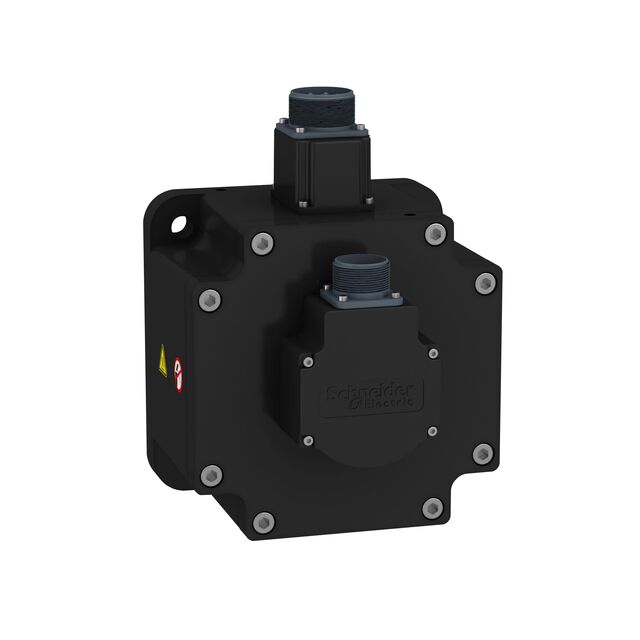

Schneider Electric 3.5 kW Servo Motor, 220 V, 16.7nm, 3000 rpm

BCH2MR3523CF6C Schneider Electric 3.5 kW Servo Motor, 220 V, 16.7nm, 3000 rpm
BCH2MR3523CF6C
Schneider Electric

Product Information

Better World Verification:
Green Premium
Shaft Diameter:
35mm
Current Rating:
57.8 A rms
Series:
BCH2
Output Speed:
3000 rpm
Rotor Inertia:
54.1kg.cm²
Length:
281mm
Maximum Output Torque:
50.3 Nm
Width:
180mm
Depth:
245mm
Better World Product:
Yes
Supply Voltage:
220 V
Stall Torque:
16.7Nm
Power Rating:
3.5 kW
Torque - Rated (oz-in / mNm):
2364.9 / 16700
Voltage - Rated:
220VAC
RoHS Status:
ROHS3 Compliant
Termination Style:
Connector
Power - Rated:
3.5kW
Operating Temperature:
0°C ~ 40°C
Approval Agency:
-
Motor Type:
-
Type:
AC Motor
Function:
Servomotor
title:
BCH2MR3523CF6C
Mounting Hole Spacing:
4.500" (114.30mm)
Length - Shaft and Bearing:
3.110" (79.00mm)
RPM:
3000 RPM
Manufacturer:
Schneider Electric
Diameter - Shaft:
1.378" (35.00mm)
Encoder Type:
Absolute
Size / Dimension:
Square - 7.087" x 7.087" (180.00mm x 180.00mm)
Gear Reduction Ratio:
-
standardLeadTime:
5 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Brake, Key, Oil Seal
Weight:
-
Series:
Lexium 28
Torque - Max Momentary (oz-in / mNm):
-
Packaging:
Box
RoHs Compliant
Checking for live stock

This is 3.5 kW Servo Motor 220 V 16.7nm 3000 rpm manufactured by Schneider Electric. The manufacturer part number is BCH2MR3523CF6C. Better World Verification Options - green premium. The diameter of the shaft is 35mm. The product has a current rating of 57.8 a rms. The product bch2, is a highly preferred choice for users. Its output speed is 3000 rpm . Features 54.1kg.cm² of rotor inertia. Its accurate length is 281mm. Its maximum output torque is about 50.3 nm . Furthermore, the product is 180mm wide. The product comes in 245mm depth. Is it a better world product? yes. Features 220 v supply voltage. It is offered with 16.7nm stall torque . Feature 3.5 kw of power rating. It has a rated torque (oz-in / mNm) of 2364.9 / 16700. It also exhibits voltage rating of 220vac. The product is rohs3 compliant. Moreover, it has connector terminal style. It features a power rating of 3.5kw. The product has 0°c ~ 40°c operating temperature range. It comes in ac motor configuration. It performs basic function of servomotor. It has a 4.500" (114.30mm) mounting hole space. The typical length of shaft and bearing is 3.110" (79.00mm). It provides maximum rpm up to 3000 rpm. The schneider electric's product offers user-desired applications. Shaft with a 1.378" (35.00mm) diameter. The product is absolute encoder. The product's diameters include square - 7.087" x 7.087" (180.00mm x 180.00mm). It has a long 5 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The splendid features of the product include brake, key, oil seal. The product lexium 28, is a highly preferred choice for users. In addition, box is the available packaging type of the product.

pdf icon
Datasheet(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.


FAQs

Yes. You can also search BCH2MR3523CF6C on website for other similar products.
We accept all major payment methods for all products including ET14151163. Please check your shopping cart at the time of order.
You can order Schneider Electric brand products with BCH2MR3523CF6C directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Servo Motors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Schneider Electric 3.5 kW Servo Motor, 220 V, 16.7nm, 3000 rpm. You can also check on our website or by contacting our customer support team for further order details on Schneider Electric 3.5 kW Servo Motor, 220 V, 16.7nm, 3000 rpm.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14151163 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Schneider Electric" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14151163.
Yes. We ship BCH2MR3523CF6C Internationally to many countries around the world.
