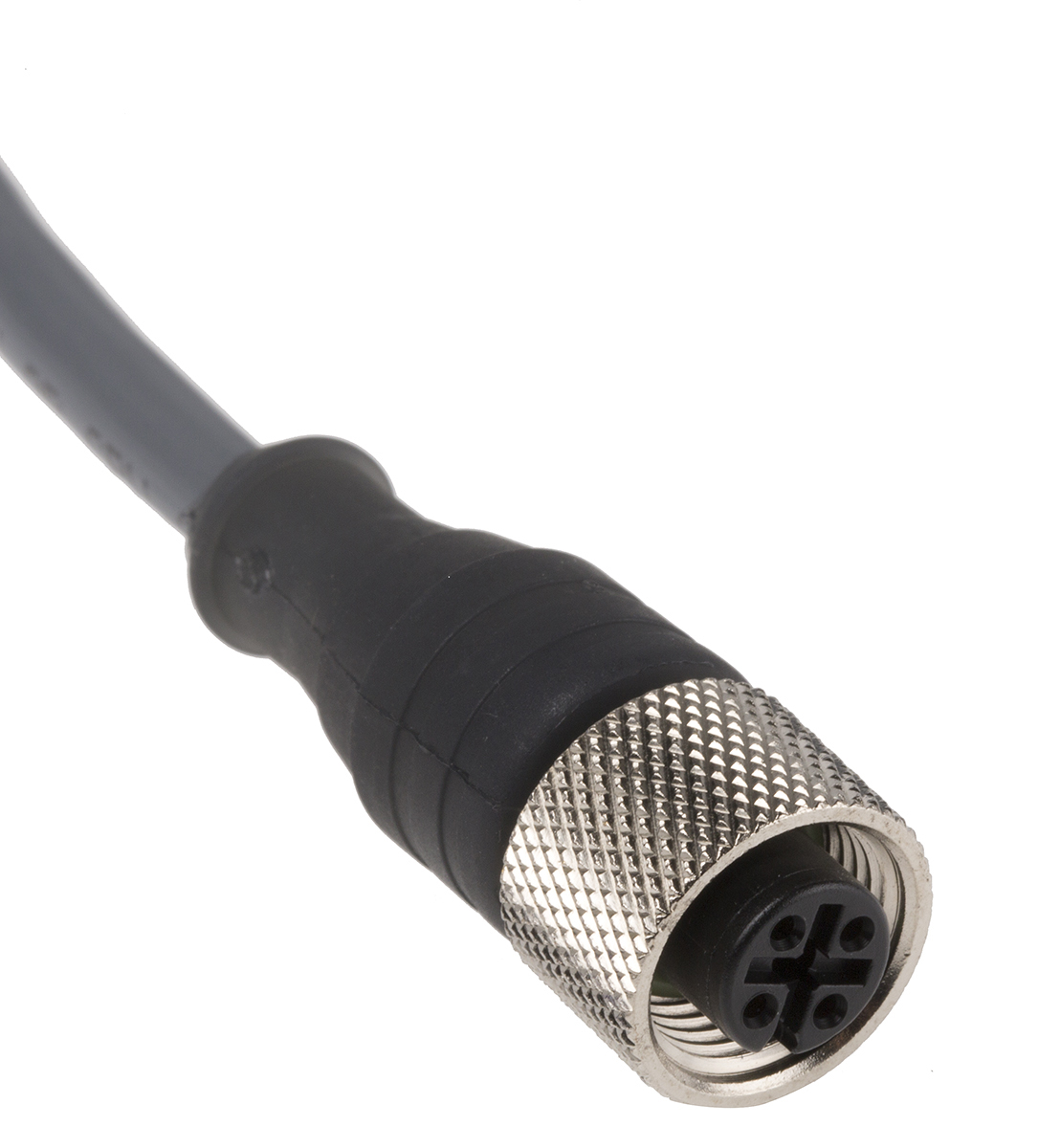

This is Cable assembly with a 4 Pole Straight Female M12 Female 2.5 A 250 V 3m Cable manufactured by Alpha Wire. The manufacturer part number is AR0400105 SL 357. Features 22 awg - American Wire Gauge. The product has a current rating of 2.5 a. Additionally, it is oil resistant yes . The product consists of 4 cores. Its outer diameter is 4.57mm. Additionally, it contains 26 strands. The product complies with all safety standards, such as ansi/ul 2238, cru, csa-c22.2 no. 182.3, ul file number e485156. Moreover, this cable has a multicore shape. It is IP rated with ip67, ip68. The core strands are 26/36. Moreover, the product is unshielded . The product has -40 → +105 °c of operating temperature range. It has a maximum operating temperature of +105°c. Moreover, the product has a nominal 300 v voltage rating. The connector 1 has a straight orientation. It bears 10 x d (dynamic), 7 x d (static) of minimum bend radius. This connector 1 is a female. Its accurate length is 3m. The sheath is constructed from durable and adorable pur material. The conductor is made from copper material. The product alpha connect, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is female. There are 4 contacts on connector 1. The sheath has an adorable grey colour. The product has 0.34 mm² cross section area. Whereas, the minimum operating temperature of the product is -40°c. While the Connector 2 is unterminated. Connector 1 is m12. It has a robust pvc insulation material.
For more information please check the datasheets.
