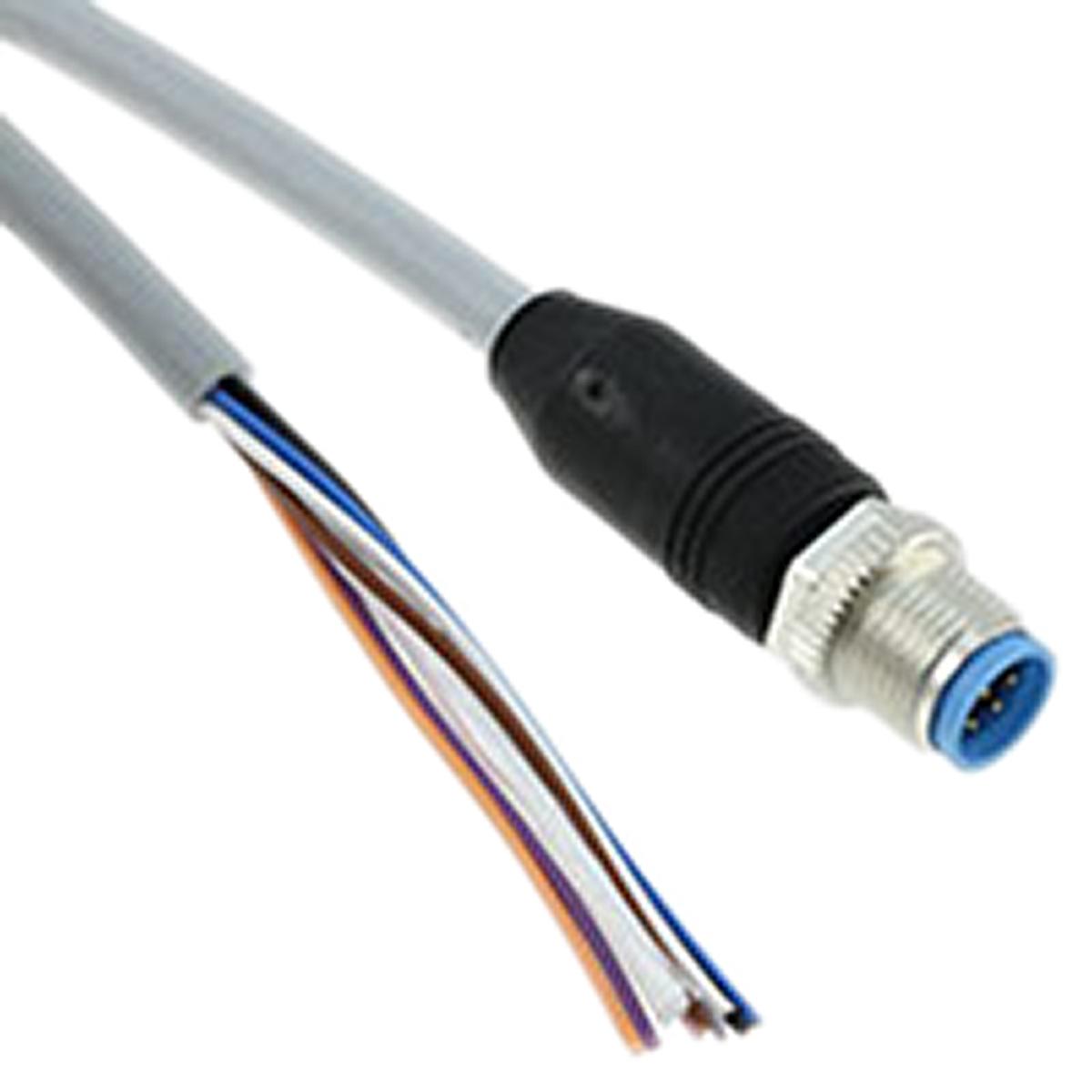

This is Cable assembly With an 8 Pole M12 Connector Plug and an Unterminated End 2 A 30 V ac/dc manufactured by TE Connectivity. The manufacturer part number is 2273040-1. Features 24 awg - American Wire Gauge. The product has a current rating of 2 a. The product consists of 8 cores. Its outer diameter is 6mm. The product complies with all safety standards, such as csa, elv compliant, en 60529, rohs compliant, ul. Moreover, this cable has a multicore shape. It is IP rated with ip65, ip67. Moreover, the product is unshielded . The product has -40 → +80 °c of operating temperature range. It has a maximum operating temperature of +80°c. Moreover, the product has a nominal 30 v ac/dc voltage rating. The connector 1 has a straight orientation. It bears 60 mm of minimum bend radius. This connector 1 is a male. Its accurate length is 1.5m. The sheath is constructed from durable and adorable pur material. On the other hand, the gender of connector 1's housing is male. There are 8 contacts on connector 1. The product is coded with a. The sheath has an adorable grey colour. The product has 0.25 mm² cross section area. Whereas, the minimum operating temperature of the product is -40°c. While the Connector 2 is unterminated. Connector 1 is m12. It has a robust pp insulation material.
For more information please check the datasheets.
