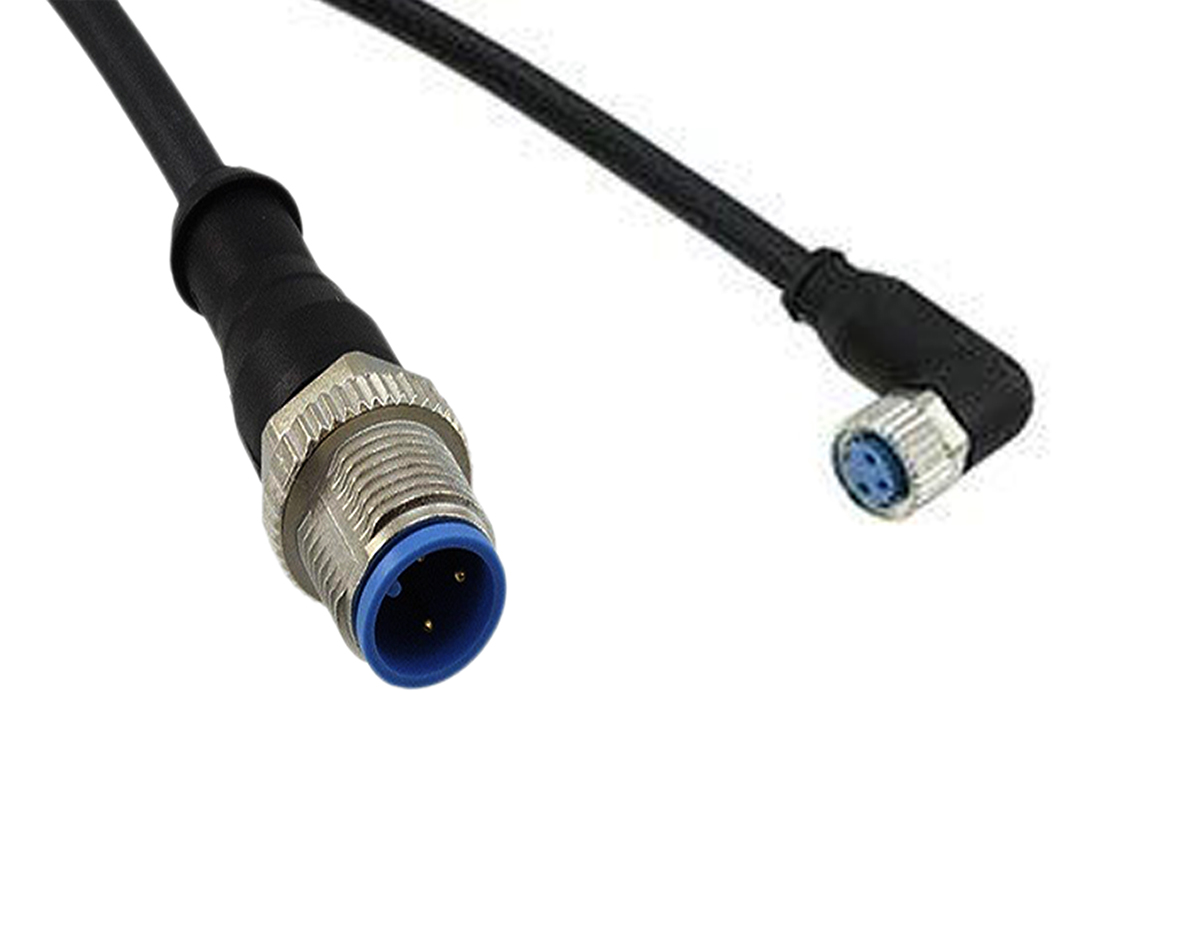

This is Cable assembly with a 3 Pole M8 Socket and 3 Pole M8 Plug 4 A 24 V dc IP65 IP67 manufactured by TE Connectivity. The manufacturer part number is 2273124-4. Features 22 awg - American Wire Gauge. The product has a current rating of 4 a. The product consists of 3 cores. Additionally, its connector 2 housing is of male gender . Its outer diameter is 4.1mm. The product complies with all safety standards, such as csa, elv compliant, en 60529, rohs compliant, ul. Moreover, this cable has a multicore shape. It is IP rated with ip65, ip67. Moreover, the product is unshielded . The product has -40 → +80 °c of operating temperature range. It has a maximum operating temperature of +80°c. Moreover, the product has a nominal 24 v dc voltage rating. The connector 1 has a right angle orientation. It bears 41 mm of minimum bend radius. This connector 1 is a female. Its accurate length is 1.5m. The sheath is constructed from durable and adorable pur material. In addition, its connector 2 orientation is straight . Connector 2 is a male connector. On the other hand, the connector 2 has 3 contacts. On the other hand, the gender of connector 1's housing is female. There are 3 contacts on connector 1. The product is coded with a. The sheath has an adorable black colour. The product has 0.34 mm² cross section area. Whereas, the minimum operating temperature of the product is -40°c. While the Connector 2 is m8. Connector 1 is m8. It has a robust pp insulation material.
For more information please check the datasheets.
