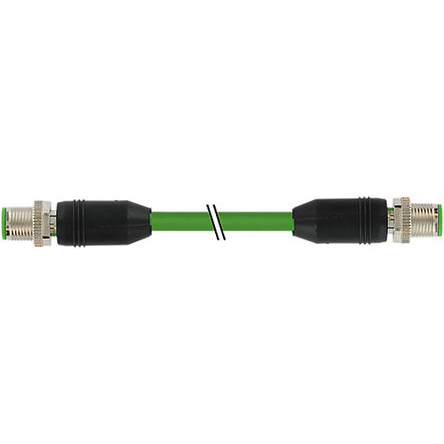

Murrelektronik Limited 2m Cable assembly With an 8 Pole M12 Connector Plug and 8 Pole M12 Plug, 500 mA

7000-51001-7900200 Murrelektronik Limited 2m Cable assembly With an 8 Pole M12 Connector Plug and 8 Pole M12 Plug, 500 mA
Murrelektronik Limited

Product Information

American Wire Gauge:
20 AWG, 26 AWG
Current Rating:
0.5 A
Oil Resistant:
Yes
Number of Cores:
8
Connector 2 Housing Gender:
Male
Outer Diameter:
6.5mm
Standards Met:
CSA, UL
Cable Shape:
Multicore
Voltage Rating:
50 V ac, 60 V dc
Shielded/Unshielded:
Shielded
Operating Temperature Range:
-10 → +50 (Mobile) °C, -30 → +80 (Fixed) °C
Maximum Operating Temperature:
+50 (Mobile) °C, +80 (Fixed) °C
IP Rating:
IP66K, IP67
Connector 1 Orientation:
Straight
Minimum Bend Radius:
12 x D (Moving), 8 x D (Fixed)
Connector 1 Gender:
Male
Length:
2m
Sheath Material:
PUR
Connector 2 Orientation:
Straight
Connector 2 Gender:
Male
Connector 2 Number of Contacts:
8
Series:
X-Coded
Connector 1 Housing Gender:
Male
Connector 1 Number of Contacts:
8
Coding:
X
Sheath Colour:
Green
Cross Sectional Area:
0.14 mm², 0.5 mm²
Minimum Operating Temperature:
-10 (Mobile) °C, -30 (Fixed) °C
Connector 2:
M12
Connector 1:
M12
Insulation Material:
PP
RoHs Compliant
Checking for live stock

This is 2m Cable assembly With an 8 Pole M12 Connector Plug and 8 Pole M12 Plug 500 mA manufactured by Murrelektronik Limited. The manufacturer part number is 7000-51001-7900200. Features 20 awg, 26 awg - American Wire Gauge. The product has a current rating of 0.5 a. Additionally, it is oil resistant yes . The product consists of 8 cores. Additionally, its connector 2 housing is of male gender . Its outer diameter is 6.5mm. The product complies with all safety standards, such as csa, ul. Moreover, this cable has a multicore shape. Moreover, the product has a nominal 50 v ac, 60 v dc voltage rating. Moreover, the product is shielded . The product has -10 → +50 (mobile) °c, -30 → +80 (fixed) °c of operating temperature range. It has a maximum operating temperature of +50 (mobile) °c, +80 (fixed) °c. It is IP rated with ip66k, ip67. The connector 1 has a straight orientation. It bears 12 x d (moving), 8 x d (fixed) of minimum bend radius. This connector 1 is a male. Its accurate length is 2m. The sheath is constructed from durable and adorable pur material. In addition, its connector 2 orientation is straight . Connector 2 is a male connector. On the other hand, the connector 2 has 8 contacts. The product x-coded, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is male. There are 8 contacts on connector 1. The product is coded with x. The sheath has an adorable green colour. The product has 0.14 mm², 0.5 mm² cross section area. Whereas, the minimum operating temperature of the product is -10 (mobile) °c, -30 (fixed) °c. While the Connector 2 is m12. Connector 1 is m12. It has a robust pp insulation material.

pdf icon
7000-51001-7900200 Datasheet(Technical Reference)
