Repetitive Peak Forward Blocking Voltage:
2600V
Diameter:
58.5mm
Peak On-State Voltage:
2.07V
Dimensions:
58.5 (Dia.) x 27mm
Mounting Type:
Stud
Repetitive Peak Reverse Voltage:
2600V
Surge Current Rating:
9200A
Rated Average On-State Current:
910A
Repetitive Peak Off-State Current:
60mA
Package Type:
N0910
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
1000mA
Maximum Gate Trigger Current:
300mA

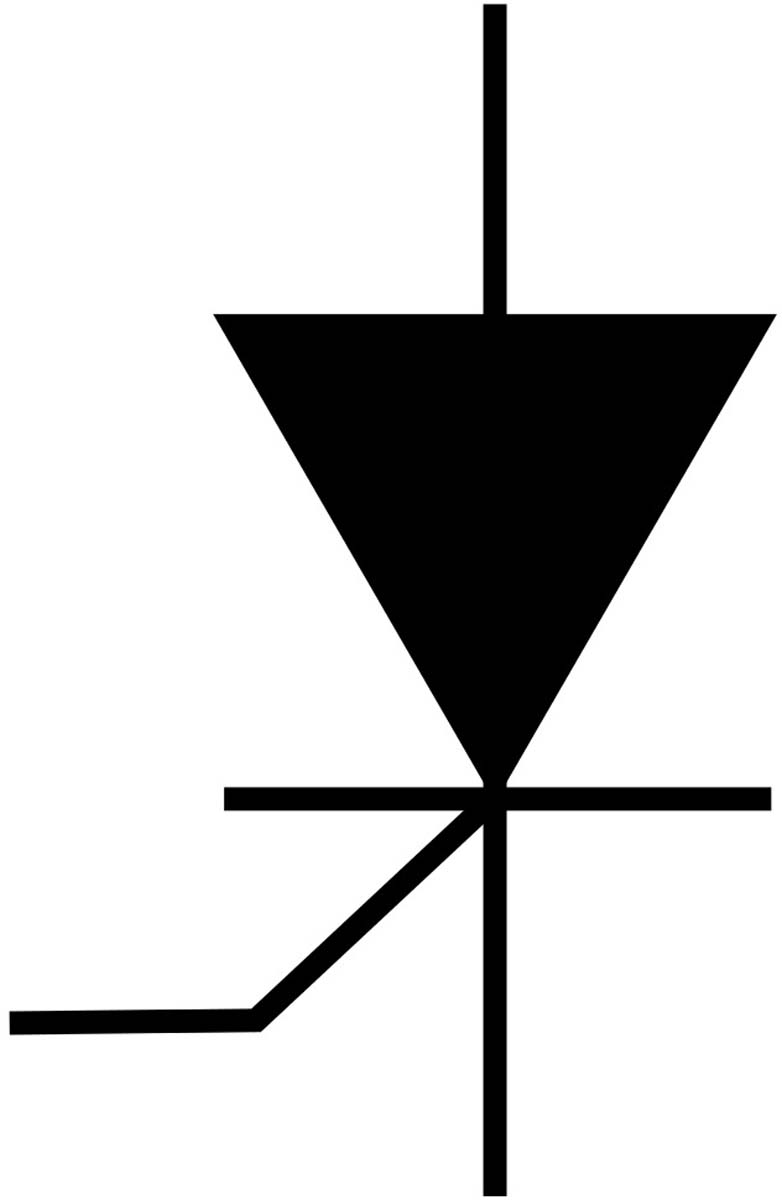

Thyristor Type:
PCT
Maximum Operating Temperature:
+125 °C
Pin Count:
2
Maximum Gate Trigger Voltage:
3V
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Off State:
2.6 kV
Voltage - Gate Trigger (Vgt) (Max):
3 V
Operating Temperature:
-40°C ~ 125°C
Package / Case:
TO-200AB, B-PuK
Current - Hold (Ih) (Max):
1 A
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
1788 A
Package:
Box
Current - Off State (Max):
60 mA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
300 mA
standardLeadTime:
8 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
10100A @ 50Hz
Voltage - On State (Vtm) (Max):
2.07 V
Mounting Type:
Chassis Mount
Current - On State (It (AV)) (Max):
910 A
Series:
-
Supplier Device Package:
W10
SCR Type:
Standard Recovery
Base Product Number:
N0910
ECCN:
EAR99
