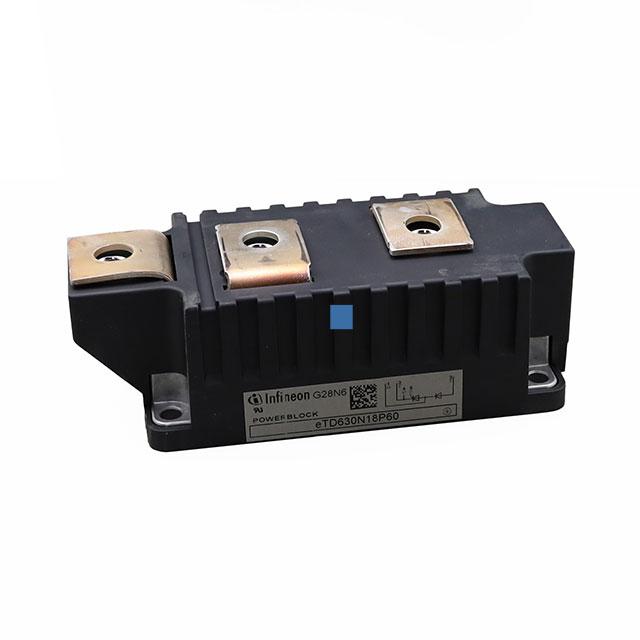

Infineon Technologies ETD630N18P60HPSA1

ETD630N18P60HPSA1 Infineon Technologies
Infineon Technologies

Product Information

HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Off State:
1.8 kV
Voltage - Gate Trigger (Vgt) (Max):
2 V
Operating Temperature:
135°C (TJ)
Package / Case:
Module
Current - Hold (Ih) (Max):
300 mA
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
700 A
Structure:
Series Connection - SCR/Diode
Package:
Tray
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Gate Trigger (Igt) (Max):
250 mA
standardLeadTime:
24 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
16800A, 20000A
Mounting Type:
Chassis Mount
Current - On State (It (AV)) (Max):
628 A
Series:
-
Number of SCRs, Diodes:
1 SCR, 1 Diode
ECCN:
EAR99
Checking for live stock

This is manufactured by Infineon Technologies. The manufacturer part number is ETD630N18P60HPSA1. It is assigned with possible HTSUS value of 8541.30.0080. The product is rohs3 compliant. It has an off state voltage of 1.8 kv. While the maximum voltage - gate trigger includes 2 v. The product has 135°c (tj) operating temperature range. Moreover, the product comes in module. The maximum hold current is 300 ma. In addition, it is reach unaffected. The maximum 700 a of on state current. It has a series connection - scr/diode structure. It is shipped in tray package . Its typical moisture sensitivity level is not applicable. The maximum gate triggering current is 250 ma. It has a long 24 weeks standard lead time. Non rep. current with 50, 60Hz surge included 16800a, 20000a. The product is available in chassis mount configuration. Maximum on state current of 628 a. It consists of 1 scr, 1 diode . The product is designated with the ear99 code number.
