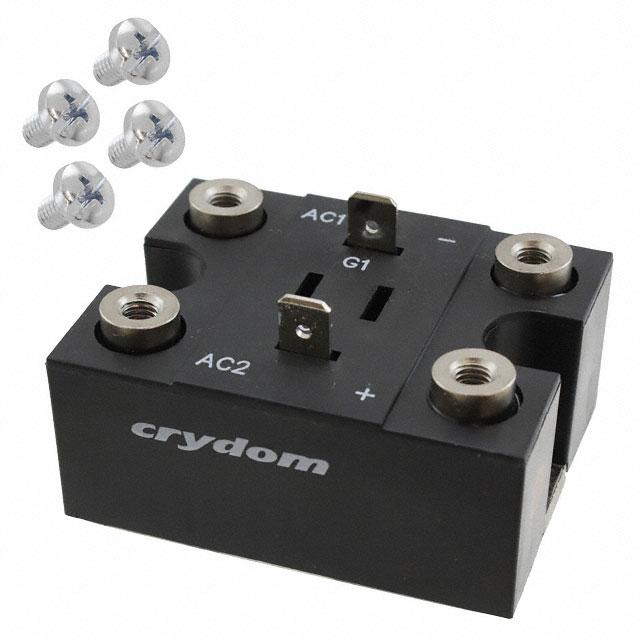

Sensata-Crydom M505015F

M505015F Sensata-Crydom
Sensata-Crydom

Product Information

HTSUS:
8541.30.0080
RoHS Status:
RoHS Compliant
Voltage - Off State:
1.2 kV
Voltage - Gate Trigger (Vgt) (Max):
3 V
Operating Temperature:
-40°C ~ 125°C (TJ)
Package / Case:
Module
edacadModel:
M505015F Models
edacadModelUrl:
/en/models/483191
Structure:
Bridge, Single Phase - SCRs/Diodes (Layout 1)
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Gate Trigger (Igt) (Max):
150 mA
standardLeadTime:
24 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
600A @ 60Hz
Mounting Type:
Chassis Mount
Series:
M50
Number of SCRs, Diodes:
2 SCRs, 2 Diodes
Base Product Number:
M505015
ECCN:
EAR99
Checking for live stock

This is manufactured by Sensata-Crydom. The manufacturer part number is M505015F. It is assigned with possible HTSUS value of 8541.30.0080. The product is rohs compliant. It has an off state voltage of 1.2 kv. While the maximum voltage - gate trigger includes 3 v. The product has -40°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in module. It has a bridge, single phase - scrs/diodes (layout 1) structure. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. The maximum gate triggering current is 150 ma. It has a long 24 weeks standard lead time. Non rep. current with 50, 60Hz surge included 600a @ 60hz. The product is available in chassis mount configuration. The product m50, is a highly preferred choice for users. It consists of 2 scrs, 2 diodes . Moreover, it corresponds to m505015, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Solid State Power Switching Brochure(Datasheets)
pdf icon
M50 Series(Datasheets)
pdf icon
SCR Module Selection Guide(Other Related Documents)
pdf icon
CE Declaration of Conformity(Other Related Documents)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search M505015F on website for other similar products.
We accept all major payment methods for all products including ET16686822. Please check your shopping cart at the time of order.
You can order Sensata-Crydom brand products with M505015F directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in SCRs - Modules category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Sensata-Crydom M505015F. You can also check on our website or by contacting our customer support team for further order details on Sensata-Crydom M505015F.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16686822 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Sensata-Crydom" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16686822.
Yes. We ship M505015F Internationally to many countries around the world.
