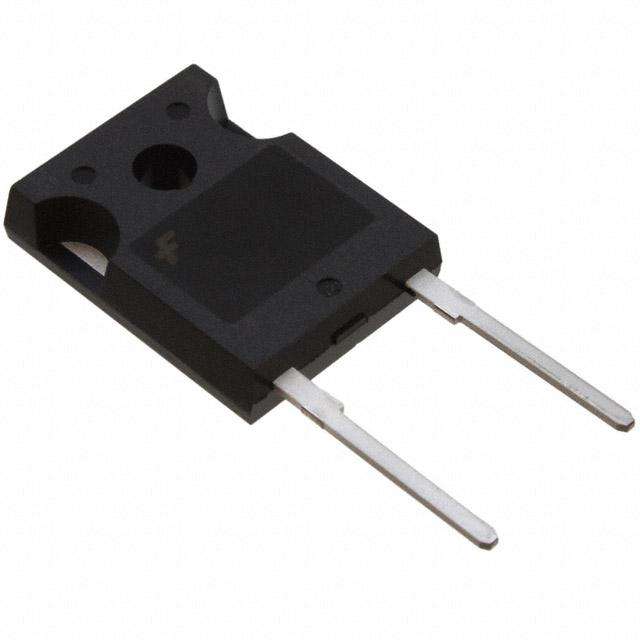

onsemi 1200V 30A, Silicon Junction Diode, 2-Pin TO-247 RHRG30120

RHRG30120 onsemi 1200V 30A, Silicon Junction Diode, 2-Pin TO-247
RHRG30120
RHRG30120
ET21459001
onsemi

Product Information

Mounting Type:
Through Hole
Diode Technology:
Silicon Junction
Peak Reverse Recovery Time:
85ns
Peak Non-Repetitive Forward Surge Current:
300A
Maximum Forward Voltage Drop:
3.2V
Maximum Continuous Forward Current:
30A
Rectifier Type:
Switching
Package Type:
TO-247
Number of Elements per Chip:
1
Diode Type:
Rectifier
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
1200V
Reverse Recovery Time (trr):
85 ns
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
TO-247-2
Operating Temperature - Junction:
-65°C ~ 175°C
REACH Status:
REACH Unaffected
edacadModel:
RHRG30120 Models
edacadModelUrl:
/en/models/965456
Current - Average Rectified (Io):
30A
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
3.2 V @ 30 A
Voltage - DC Reverse (Vr) (Max):
1200 V
Capacitance @ Vr, F:
-
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Reverse Leakage @ Vr:
250 µA @ 1200 V
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-247-2
Packaging:
Tube
Technology:
Avalanche
Base Product Number:
RHRG30
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 1200V 30A Silicon Junction Diode 2-Pin TO-247 manufactured by onsemi. The manufacturer part number is RHRG30120. The product is available in through hole configuration. The product utilizes silicon junction diode technology. Moreover, it has a peak reverse recovery time about 85ns . Moreover, a bespoke product has 300a peak non-repetitive forward surge current. It features 3.2v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 30a. This switching product is highly suited for various professionals in various settings. The package is a sort of to-247. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 1200v. It has a trr (reverse recovery time) of 85 ns. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in to-247-2. The product operate at temperatures ranging from -65°c ~ 175°c. In addition, it is reach unaffected. It features a 30a of average rectified current. It has a robust speed of fast recovery =< 500ns, > 200ma (io). The product has a maximum forward voltage of 3.2 v @ 30 a. While it has maximum reverse voltage of 1200 v. Its typical moisture sensitivity level is not applicable. 250 µa @ 1200 v is the reverse leakage value of a bespoke product. to-247-2 is the supplier device package value. In addition, tube is the available packaging type of the product. This product use avalanche technology. Moreover, it corresponds to rhrg30, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)
pdf icon
FFHx/ISLx/RHRx/RURx 17/Jun/2022(PCN Assembly/Origin)
pdf icon
RHRG30120 Des/DS Chg 27/Nov/2020(PCN Design/Specification)
pdf icon
Dimension/Color Change 24/Feb/2021(PCN Design/Specification)
pdf icon
Obsolete Notice 30/Sep/2022(PCN Obsolescence/ EOL)
pdf icon
RHRG30120(Datasheets)
pdf icon
Mult Devices 24/Oct/2017(PCN Packaging)
pdf icon
Packing quantity increase 28/Dec/2020(PCN Packaging)
