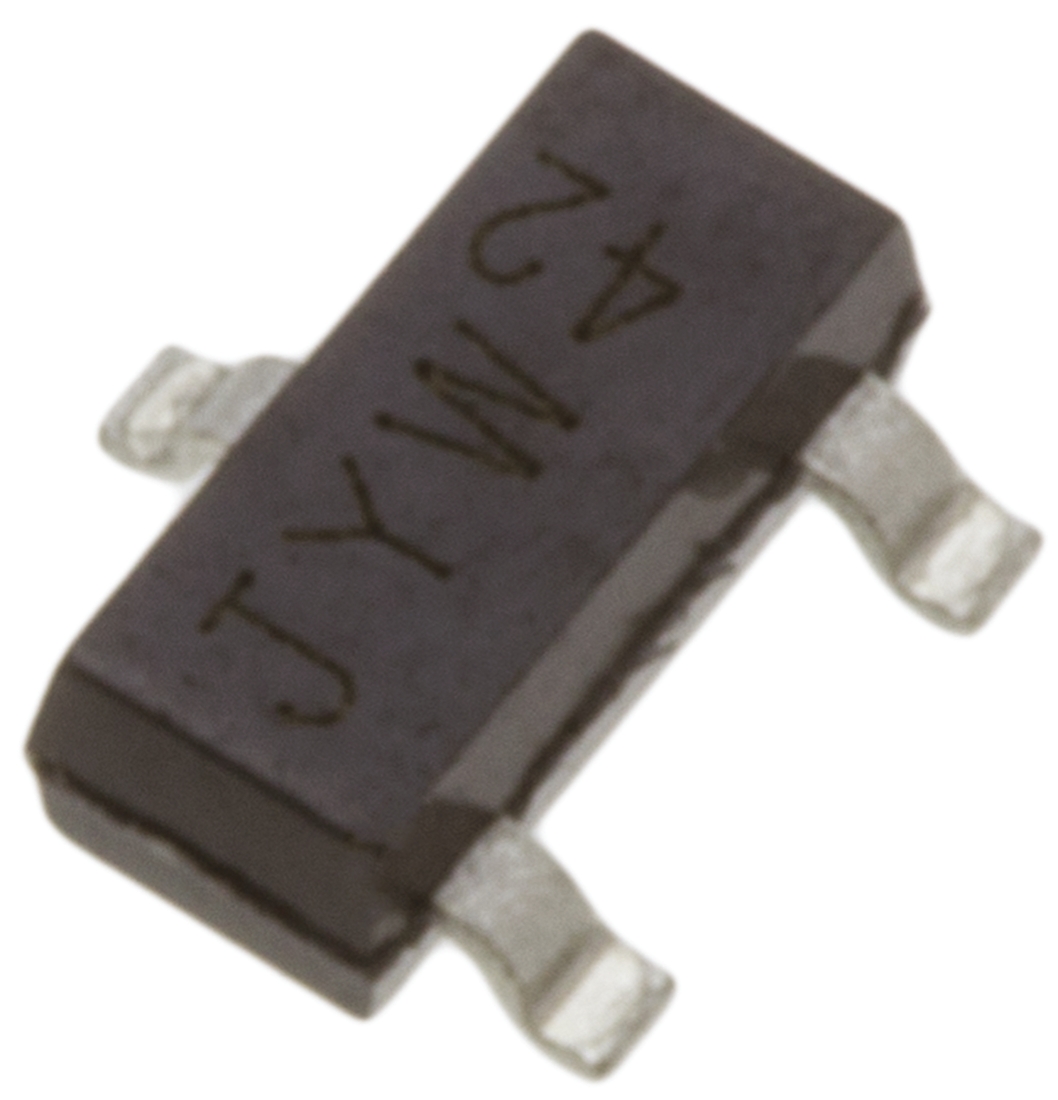

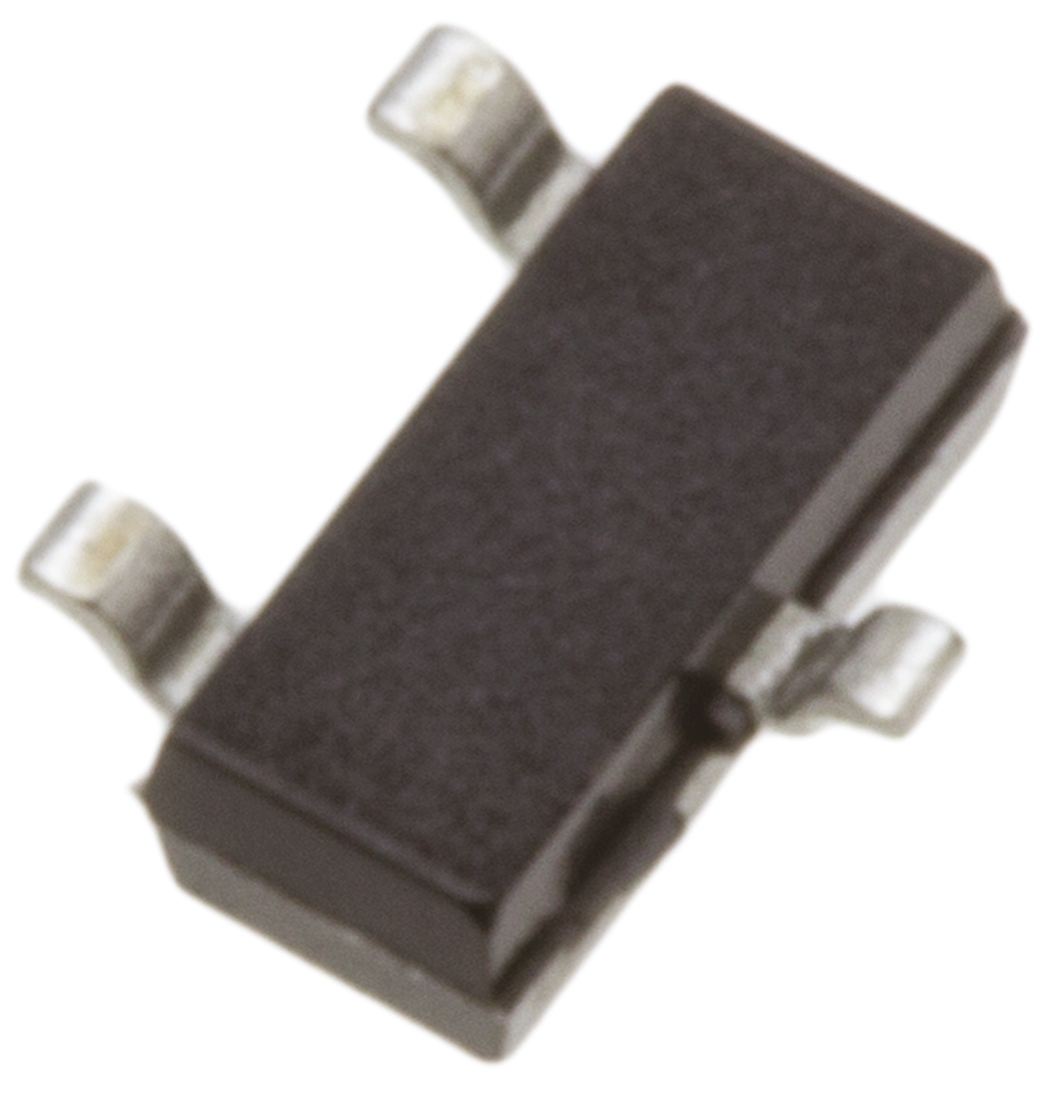

Nexperia BAV199,215, Dual SMT Low Leakage Diode, Series, 85V 160mA, 3-Pin SOT-23

Enrgtech Part No: ET16799581
|
Manufacturer Part No:
BAV199,215
|
Manufacturer: Nexperia

BAV199-215 Nexperia BAV199,215, Dual SMT Low Leakage Diode, Series, 85V 160mA, 3-Pin SOT-23

Product Information

Mounting Type:

Surface Mount

Diode Technology:

Silicon Junction

Peak Reverse Recovery Time:

3µs

Peak Non-Repetitive Forward Surge Current:

Maximum Forward Voltage Drop:

1.25V

Maximum Continuous Forward Current:

160mA

Rectifier Type:

Low Leakage

Package Type:

SOT-23 (TO-236AB)

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Series

Pin Count:

Checking for live stock

The Nexperia BAV199,215 is a high-performance dual surface-mount technology (SMT) low leakage diode that belongs to the SOT-23 series. Designed for robust performance in a variety of applications, this diode features a reverse voltage of 85V and a forward current of 160mA, making it suitable for diverse electronic circuits. The dual diode configuration within a single 3-pin SOT-23 package allows for efficient space utilisation, which is crucial in compact electronic designs. Renowned for its low leakage current, the BAV199,215 ensures minimal power loss and high reliability, making it ideal for precision and low-power applications. The SOT-23 package further enhances thermal management and provides ease of integration in automated manufacturing processes.

Unique Benefits of Using the Nexperia BAV199,215, Dual SMT Low Leakage Diode, Series, 85V 160mA, 3-Pin SOT-23

Low Leakage Current: Minimises power loss, enhancing efficiency in low-power applications.
High Reverse Voltage (85V): Suitable for a wide range of voltage-sensitive applications.
Dual Diode Configuration: Offers space-saving advantages in compact designs.
Robust SMT Package: Ensures ease of integration in automated manufacturing.
High Reliability: Suitable for long-term and critical applications.

The Nexperia BAV199,215, Dual SMT Low Leakage Diode, Series, 85V 160mA, 3-Pin SOT-23: Broad Application Spectrum

Protects sensitive circuits by clamping excess voltage.
Ideal for fast-switching applications due to low forward voltage.
Safeguards circuits against reverse voltage conditions.
Used in voltage regulation circuits to maintain stable output.
Suitable for radio frequency signal processing due to low capacitance.
